Heat transfer solutions

Clean steam generators

10.1.11

ISO 9001

TI-P486-08

CH Issue 1

Cert. No. LRQ 0963008

CSM-K

High Capacity Clean Steam Generator

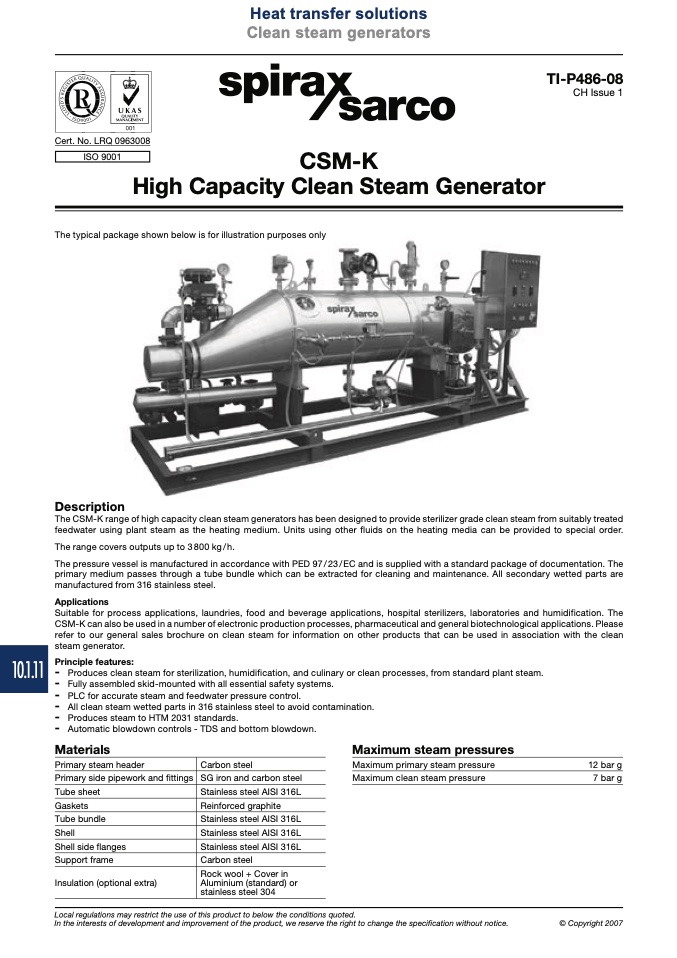

The typical package shown below is for illustration purposes only

Description

The CSM-K range of high capacity clean steam generators has been designed to provide sterilizer grade clean steam from suitably treated

feedwater using plant steam as the heating medium. Units using other fluids on the heating media can be provided to special order.

The range covers outputs up to 3800 kg/h.

The pressure vessel is manufactured in accordance with PED 97/23/EC and is supplied with a standard package of documentation. The

primary medium passes through a tube bundle which can be extracted for cleaning and maintenance. All secondary wetted parts are

manufactured from 316 stainless steel.

Applications

Suitable for process applications, laundries, food and beverage applications, hospital sterilizers, laboratories and humidification. The

CSM-K can also be used in a number of electronic production processes, pharmaceutical and general biotechnological applications. Please

refer to our general sales brochure on clean steam for information on other products that can be used in association with the clean

steam generator.

Principle features:

- Produces clean steam for sterilization, humidification, and culinary or clean processes, from standard plant steam.

- Fully assembled skid-mounted with all essential safety systems.

- PLC for accurate steam and feedwater pressure control.

- All clean steam wetted parts in 316 stainless steel to avoid contamination.

- Produces steam to HTM 2031 standards.

- Automatic blowdown controls - TDS and bottom blowdown.

Materials

Primary steam header

Primary side pipework and fittings

Tube sheet

Gaskets

Tube bundle

Shell

Shell side flanges

Support frame

Insulation (optional extra)

Carbon steel

SG iron and carbon steel

Stainless steel AISI 316L

Reinforced graphite

Stainless steel AISI 316L

Stainless steel AISI 316L

Stainless steel AISI 316L

Carbon steel

Rock wool + Cover in

Aluminium (standard) or

stainless steel 304

Maximum steam pressures

Maximum primary steam pressure

Maximum clean steam pressure

12 bar g

7 bar g

© Copyright 2007

Local regulations may restrict the use of this product to below the conditions quoted.

In the interests of development and improvement of the product, we reserve the right to change the specification without notice.
