Unit

Dimensions (mm)

A

B

C

Weight (kg)

Dry

Wet

CSM-EE/EG/EI

(without tank)

1925 800

2400*

800 1300

CSM-EF/EH/EL

(with tank)

1925 800

2400* 900 1600

10.1.9

Heat transfer solutions

Clean steam generators

Safety information, installation and maintenance

For full details including spares information, refer to the Installation

and Maintenance Instructions supplied with the unit.

Typical specification

Spirax Sarco compact clean steam generator CSM-EF (with

pre-heat tank), designed and built to produce 50 kg/h of clean

steam at 3 bar g to HTM 2031 (dependant upon feedwater) when

supplied with electrical power at 50 kW rating.

All items are to be pre-assembled and mounted on to a compact

frame and accompanied with PED certification.

How to order

Example: 1 off Spirax Sarco CSM-EF compact clean steam

generator.

Please provide details of clean steam pressure, clean steam

flowrate and feedwater system.

Ancillary items (to be used depending on installation):

-

Blowdown vessel and system

-

Clean steam check valves

-

Clean steam isolation valves

-

Feedwater isolation valves

-

Clean steam trap sets

For other items that may be required, please contact Spirax Sarco.

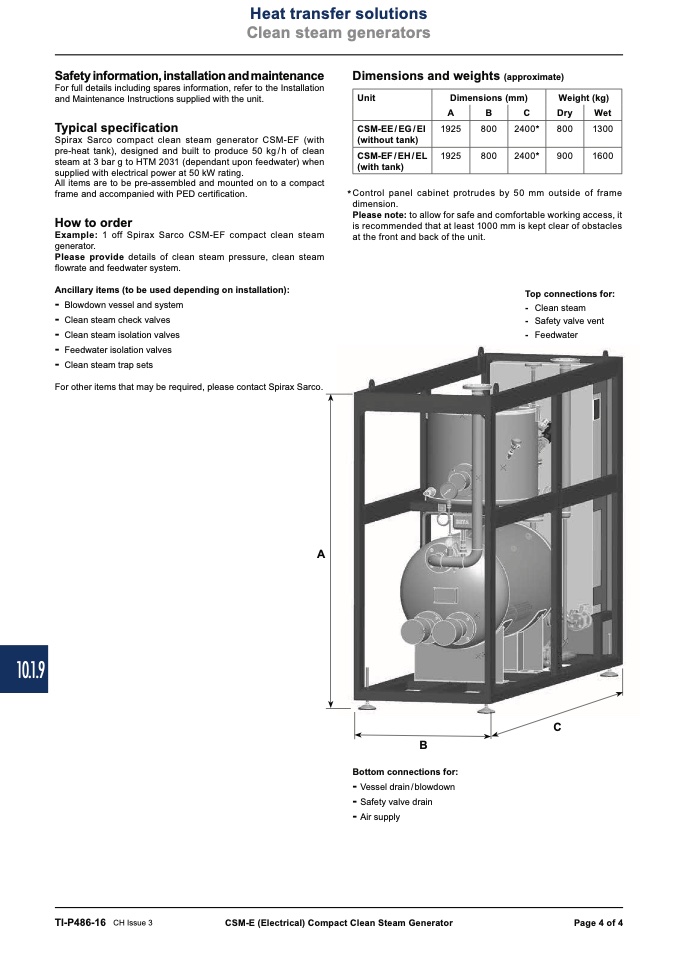

Dimensions and weights (approximate)

* Control panel cabinet protrudes by 50 mm outside of frame

dimension.

Please note: to allow for safe and comfortable working access, it

is recommended that at least 1000 mm is kept clear of obstacles

at the front and back of the unit.

Top connections for:

- Clean steam

- Safety valve vent

- Feedwater

A

Bottom connections for:

-

Vessel drain/blowdown

-

Safety valve drain

-

Air supply

B

C

TI-P486-16

CH Issue 3

CSM-E (Electrical) Compact Clean Steam Generator

Page 4 of 4
