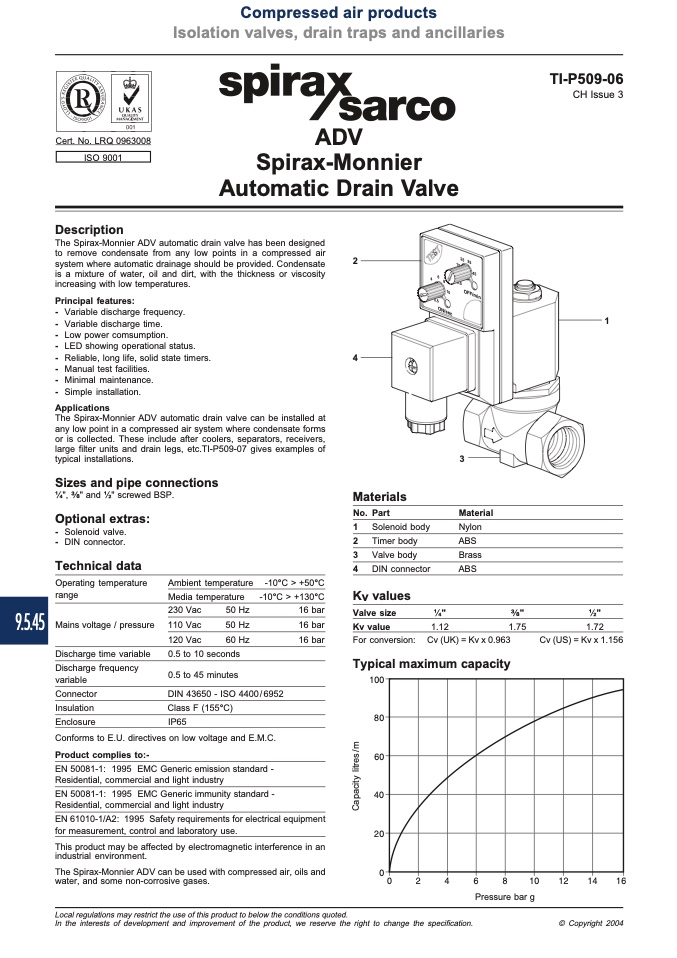

Description

ADV

Spirax-Monnier

Automatic Drain Valve

Optional extras:

- Solenoid valve.

- DIN connector.

Technical data

Operating temperature

range

9.5.45

Enclosure

Ambient temperature

Media temperature

-10°C > +50°C

-10°C > +130°C

16 bar

Mains voltage / pressure

Discharge time variable

Discharge frequency

variable

Connector

Insulation

50 Hz

60 Hz

1.75

1⁄2"

Compressed air products

Isolation valves, drain traps and ancillaries

The Spirax-Monnier ADV automatic drain valve has been designed

to remove condensate from any low points in a compressed air

system where automatic drainage should be provided. Condensate

is a mixture of water, oil and dirt, with the thickness or viscosity

increasing with low temperatures.

Principal features:

- Variable discharge frequency.

- Variable discharge time.

- Low power comsumption.

- LED showing operational status.

- Reliable, long life, solid state timers.

- Manual test facilities.

- Minimal maintenance.

- Simple installation.

Applications

The Spirax-Monnier ADV automatic drain valve can be installed at

any low point in a compressed air system where condensate forms

or is collected. These include after coolers, separators, receivers,

large filter units and drain legs, etc.TI-P509-07 gives examples of

typical installations.

Materials

No. Part

1 Solenoid body

2 Timer body

3 Valve body

4 DIN connector

Kv values

Valve size

1⁄4"

Kv value

1.12

��

�

��

Sizes and pipe connections

1⁄4",

" and 1⁄2" screwed BSP.

Material

Nylon

ABS

Brass

ABS

230 Vac

110 Vac

120 Vac

0.5 to 10 seconds

0.5 to 45 minutes

DIN 43650 - ISO 4400 / 6952

Class F (155°C)

IP65

��

Conforms to E.U. directives on low voltage and E.M.C.

Product complies to:-

EN 50081-1: 1995 EMC Generic emission standard -

Residential, commercial and light industry

EN 50081-1: 1995 EMC Generic immunity standard -

Residential, commercial and light industry

EN 61010-1/A2: 1995 Safety requirements for electrical equipment

for measurement, control and laboratory use.

This product may be affected by electromagnetic interference in an

industrial environment.

The Spirax-Monnier ADV can be used with compressed air, oils and

water, and some non-corrosive gases.

��

Local regulations may restrict the use of this product to below the conditions quoted.

In the interests of development and improvement of the product, we reserve the right to change the specification.

For conversion:

Cv (UK) = Kv x 0.963

1.72

Cv (US) = Kv x 1.156

Typical maximum capacity

Pressure bar g
