Compressed air products

Local regulations may restrict the use of this product to below the conditions quoted.

Isolation valves, drain traps and ancillaries

In the interests of development and improvement of the product, we reserve the right to change the specification without notice. © Copyright 2016

TI-P148-02

ST Issue 11

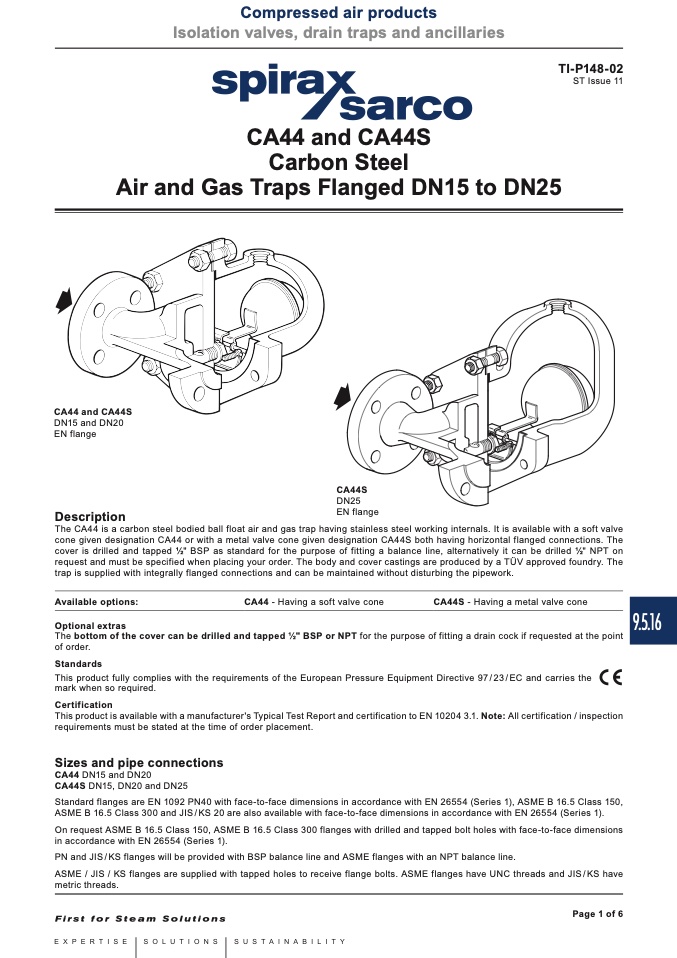

CA44 and CA44S

Carbon Steel

Air and Gas Traps Flanged DN15 to DN25

CA44 and CA44S

DN15 and DN20

EN flange

Description

CA44S

DN25

EN flange

The CA44 is a carbon steel bodied ball float air and gas trap having stainless steel working internals. It is available with a soft valve

cone given designation CA44 or with a metal valve cone given designation CA44S both having horizontal flanged connections. The

cover is drilled and tapped 1⁄2" BSP as standard for the purpose of fitting a balance line, alternatively it can be drilled 1⁄2" NPT on

request and must be specified when placing your order. The body and cover castings are produced by a TÜV approved foundry. The

trap is supplied with integrally flanged connections and can be maintained without disturbing the pipework.

Available options:

CA44 - Having a soft valve cone

CA44S - Having a metal valve cone

Optional extras

The bottom of the cover can be drilled and tapped 1⁄2" BSP or NPT for the purpose of fitting a drain cock if requested at the point

of order.

Standards

This product fully complies with the requirements of the European Pressure Equipment Directive 97/23/EC and carries the

mark when so required.

Certification

This product is available with a manufacturer's Typical Test Report and certification to EN 10204 3.1. Note: All certification / inspection

requirements must be stated at the time of order placement.

Sizes and pipe connections

CA44 DN15 and DN20

CA44S DN15, DN20 and DN25

Standard flanges are EN 1092 PN40 with face-to-face dimensions in accordance with EN 26554 (Series 1), ASME B 16.5 Class 150,

ASME B 16.5 Class 300 and JIS/KS 20 are also available with face-to-face dimensions in accordance with EN 26554 (Series 1).

On request ASME B 16.5 Class 150, ASME B 16.5 Class 300 flanges with drilled and tapped bolt holes with face-to-face dimensions

in accordance with EN 26554 (Series 1).

PN and JIS / KS flanges will be provided with BSP balance line and ASME flanges with an NPT balance line.

ASME / JIS / KS flanges are supplied with tapped holes to receive flange bolts. ASME flanges have UNC threads and JIS/KS have

metric threads.

Page 1 of 6

9.5.16
