ISO 9001
C
B
A
4.5
4.5
4.5
3.4
10.0
9.5
6.8
5.5
14.0
14.0
11.0
8.0
Cert. No. LRQ 0963008

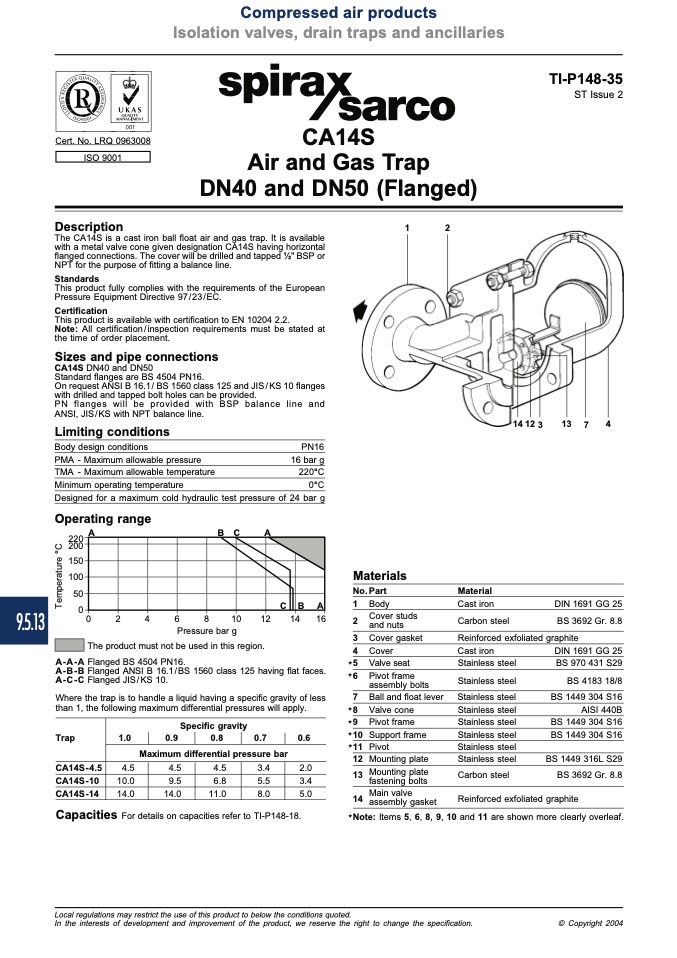

The CA14S is a cast iron ball float air and gas trap. It is available
with a metal valve cone given designation CA14S having horizontal
flanged connections. The cover will be drilled and tapped 1⁄2" BSP or
NPT for the purpose of fitting a balance line.
This product fully complies with the requirements of the European
Pressure Equipment Directive 97/23/EC.
This product is available with certification to EN 10204 2.2.
Note: All certification/inspection requirements must be stated at
the time of order placement.
1
2
Standards
Certification
CA14S DN40 and DN50
Standard flanges are BS 4504 PN16.
On request ANSI B 16.1/ BS 1560 class 125 and JIS/KS 10 flanges
with drilled and tapped bolt holes can be provided.
PN flanges will be provided with BSP balance line and
ANSI, JIS/KS with NPT balance line.
14123
13 7 4
Body design conditions
PMA - Maximum allowable pressure
TMA - Maximum allowable temperature
Minimum operating temperature
Designed for a maximum cold hydraulic test pressure of 24 bar g
220
A
BC
A
200
150
100
50
0
0
2
4
6
8
10
12
14 16
Pressure bar g
PN16
16 bar g
220°C
0°C
No. Part
1 Body
2
Cover studs
and nuts
3 Cover gasket
4 Cover
*5 Valve seat
*6 Pivot frame
assembly bolts
7 Ball and float lever
*8 Valve cone
*9 Pivot frame
*10 Support frame
*11 Pivot
12 Mounting plate
13 Mounting plate
fastening bolts
14
Main valve
assembly gasket
*Note: Items 5, 6, 8, 9, 10 and 11 are shown more clearly overleaf.
Material
DIN 1691 GG 25
BS 3692 Gr. 8.8
The product must not be used in this region.
A-A-A Flanged BS 4504 PN16.
Cast iron
Carbon steel
Reinforced exfoliated graphite
A-B-B Flanged ANSI B 16.1/BS 1560 class 125 having flat faces.
A-C-C Flanged JIS/KS 10.
Cast iron
Stainless
Stainless
Stainless
Stainless
Stainless
Stainless
Stainless
Stainless
steel
steel
steel
steel
steel
steel
steel
steel
DIN 1691 GG 25
BS 970 431 S29
BS 4183 18/8
BS 1449 304 S16
AISI 440B
BS 1449 304 S16
BS 1449 304 S16
BS 1449 316L S29
BS 3692 Gr. 8.8
Where the trap is to handle a liquid having a specific gravity of less
than 1, the following maximum differential pressures will apply.
Trap
1.0
CA14S - 4.5
CA14S-10
CA14S -14
Specific gravity
0.9
0.8
0.7
Maximum differential pressure bar
0.6
2.0
3.4
5.0
Carbon steel
Reinforced exfoliated graphite
For details on capacities refer to TI-P148-18.
Local regulations may restrict the use of this product to below the conditions quoted.
In the interests of development and improvement of the product, we reserve the right to change the specification.
