Airodyn

1⁄2" screwed BSP or NPT

Airodyn HD 1⁄2" screwed BSP

3⁄4" screwed NPT

Pressure/temperature limits

��

Pressure bar g

The product must not be used in this region.

9.5.1

Body design conditions

PMA Maximum allowable pressure

TMA Maximum allowable temperature

Minimum allowable temperature

PMO Maximum operating pressure

TMO Maximum operating temperature

Minimum operating temperature

PN63

63 bar g @ 120°C

400°C @ 42 bar g

0°C

63 bar g @ 120°C

400°C @ 42 bar g

0°C

Maximum backpressure should not exceed 80% of

PMOB the inlet pressure under any conditions of operation

otherwise the trap may not shut-off.

Minimum operating differential pressure

for satisfactory operation

Designed for a maximum cold hydraulic

0.25 bar

test pressure of 95 bar g

ASTM A743 Gr. CA40F

AISI 416

BS 1449 420 S45

BS 1449 304 S16

AISI 416

BS 1449 304 S16

Material

No. Part

1 Body

2 Cap

3 Disc

4 Strainer screen

5 Strainer cap

6 Strainer cap gasket

Material

Stainless steel

��

�

��

�

��

�

��

�

��

Compressed air products

Isolation valves, drain traps and ancillaries

Local regulations may restrict the use of this product to below the conditions quoted.

In the interests of development and improvement of the product, we reserve the right to change the specification without notice.

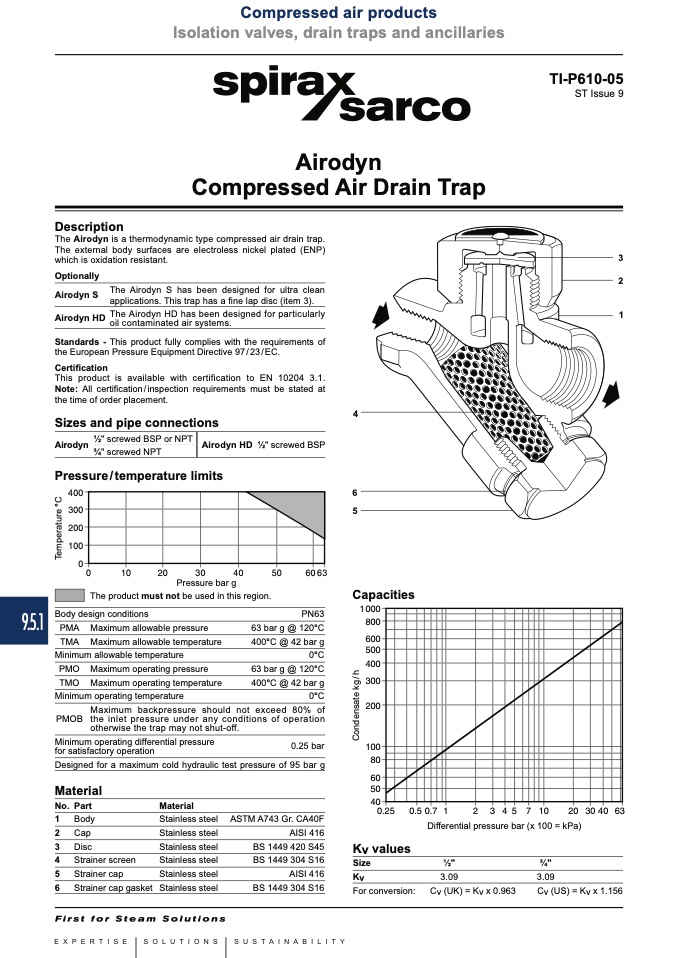

Airodyn

Compressed Air Drain Trap

Description

The Airodyn is a thermodynamic type compressed air drain trap.

The external body surfaces are electroless nickel plated (ENP)

which is oxidation resistant.

Optionally

Airodyn S

The Airodyn S has been designed for ultra clean

applications. This trap has a fine lap disc (item 3).

Airodyn HD

The Airodyn HD has been designed for particularly

oil contaminated air systems.

Standards - This product fully complies with the requirements of

the European Pressure Equipment Directive 97/23/EC.

Certification

This product is available with certification to EN 10204 3.1.

Note: All certification/inspection requirements must be stated at

the time of order placement.

Sizes and pipe connections

Capacities

��

Kv values

Size

For conversion:

1⁄2"

3.09

Cv (UK) = Kv x 0.963

3⁄4"

3.09

Cv (US) = Kv x 1.156

Differential pressure bar (x 100 = kPa)

TI-P610-05

ST Issue 9
