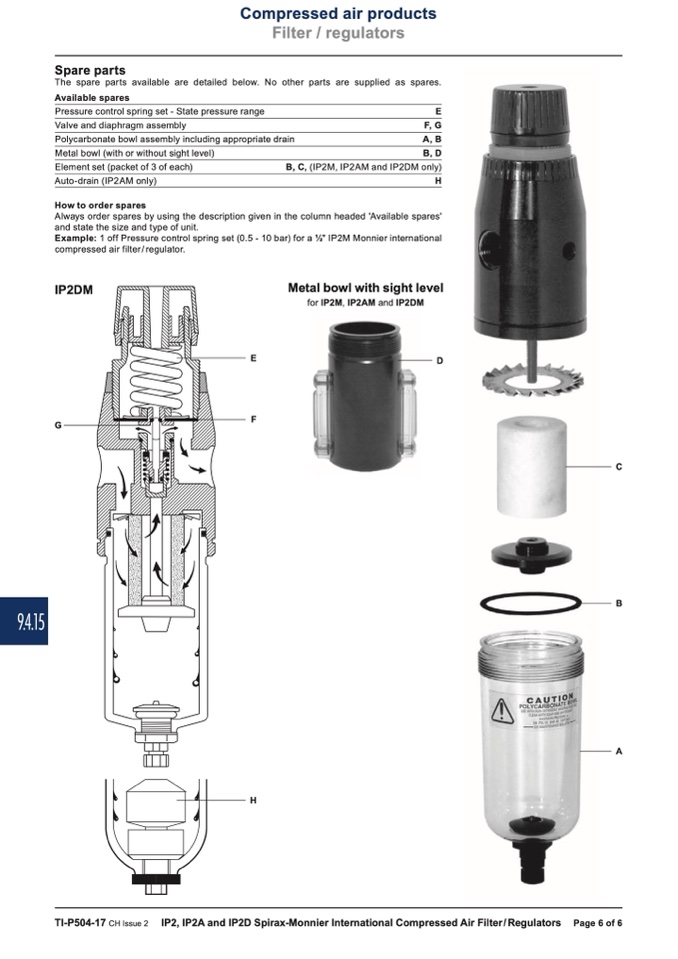

Compressed air products

Filter / regulators

9.4.15

Spare parts

The spare parts available are detailed below. No other parts are supplied as spares.

Available spares

Element set (packet of 3 of each)

Auto-drain (IP2AM only)

How to order spares

Always order spares by using the description given in the column headed 'Available spares'

and state the size and type of unit.

Example: 1 off Pressure control spring set (0.5 - 10 bar) for a 1⁄2" IP2M Monnier international

compressed air filter / regulator.

Pressure control spring set - State pressure range

Valve and diaphragm assembly

Polycarbonate bowl assembly including appropriate drain

Metal bowl (with or without sight level)

E

F, G

A, B

B, D

B, C, (IP2M, IP2AM and IP2DM only)

H

IP2DM

G

Metal bowl with sight level

for IP2M, IP2AM and IP2DM

E

F

D

C

B

A

H

TI-P504-17 CH Issue 2

IP2, IP2A and IP2D Spirax-Monnier International Compressed Air Filter / Regulators

Page 6 of 6
