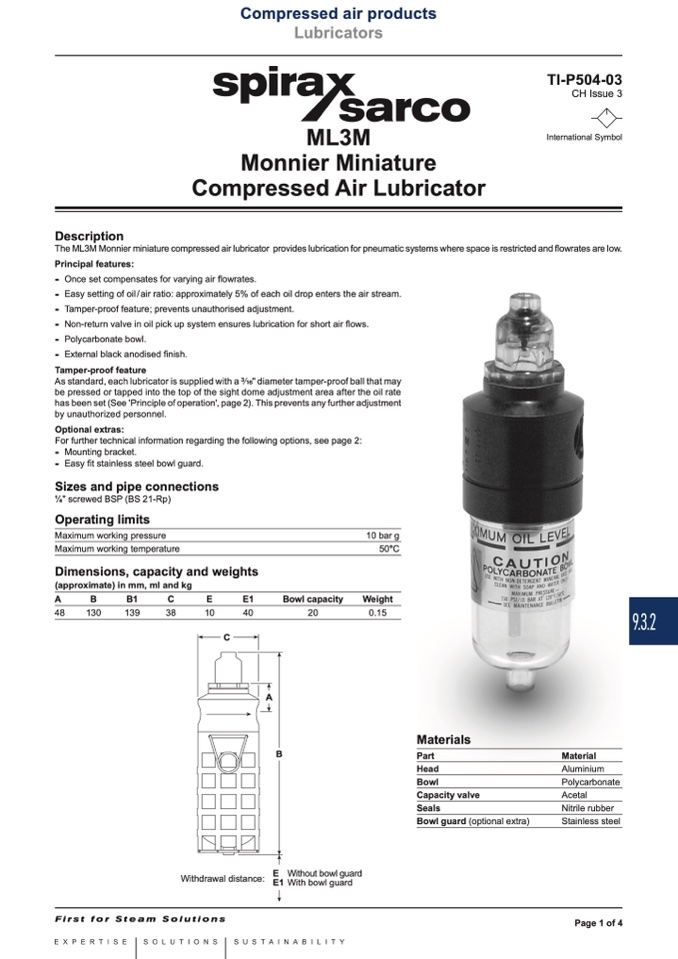

Compressed air products

Lubricators

Local regulations may restrict the use of this product to below the conditions quoted.

In the interests of development and improvement of the product, we reserve the right to change the specification without notice.

© Copyright 2013

ML3M

Monnier Miniature

Compressed Air Lubricator

TI-P504-03

CH Issue 3

International Symbol

Description

The ML3M Monnier miniature compressed air lubricator provides lubrication for pneumatic systems where space is restricted and flowrates are low.

Principal features:

-

Once set compensates for varying air flowrates.

-

Easy setting of oil / air ratio: approximately 5% of each oil drop enters the air stream.

-

Tamper-proof feature; prevents unauthorised adjustment.

-

Non-return valve in oil pick up system ensures lubrication for short air flows.

-

Polycarbonate bowl.

-

External black anodised finish.

Tamper-proof feature

As standard, each lubricator is supplied with a " diameter tamper-proof ball that may

be pressed or tapped into the top of the sight dome adjustment area after the oil rate

has been set (See 'Principle of operation', page 2). This prevents any further adjustment

by unauthorized personnel.

Optional extras:

For further technical information regarding the following options, see page 2:

-

Mounting bracket.

-

Easy fit stainless steel bowl guard.

Sizes and pipe connections

1⁄4" screwed BSP (BS 21-Rp)

Operating limits

Maximum working pressure

Maximum working temperature

10 bar g

50°C

Dimensions, capacity and weights

(approximate) in mm, ml and kg

A

B

B1

C

E

E1

4

8

13

0

13

9

3

8

1

0

40

20

0.15

C

Bowl capacity

Weight

A

B

E Without bowl guard

E1 With bowl guard

Materials

Part

Head

Bowl

Capacity valve

Seals

Bowl guard (optional extra)

Material

Aluminium

Polycarbonate

Acetal

Nitrile rubber

Stainless steel

Withdrawal distance:

Page 1 of 4

9.3.2
