Compressed air products

Regulators

Capacities

For safety valve sizing purposes the full lift capacity for the MR1M and MR2M is 0.21 K

VS

.

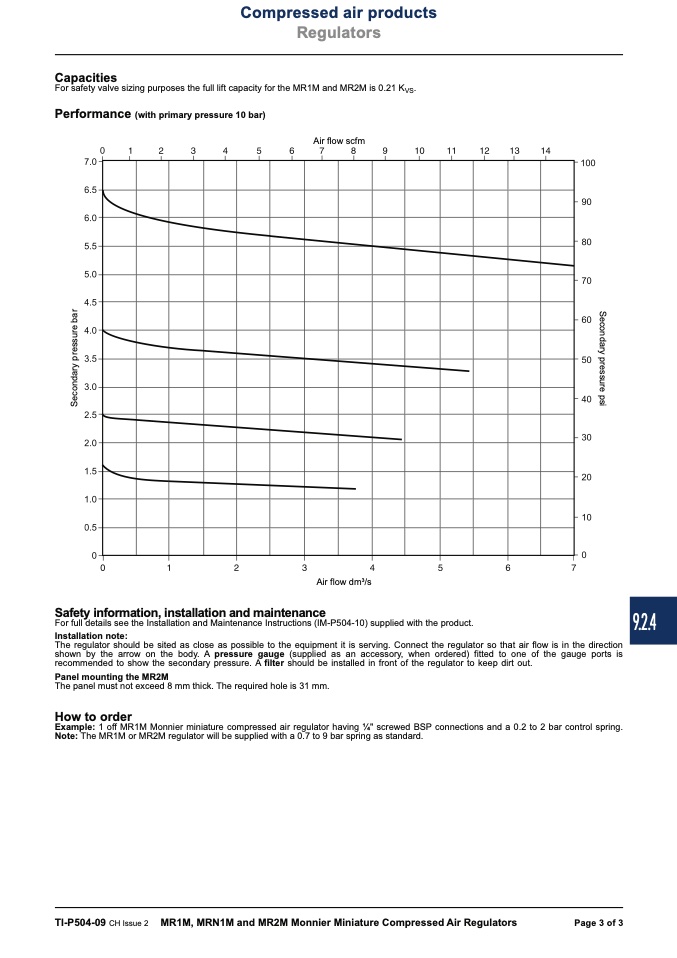

Performance (with primary pressure 10 bar)

Air flow scfm

Air flow dm

3

/s

Safety information, installation and maintenance

For full details see the Installation and Maintenance Instructions (IM-P504-10) supplied with the product.

Installation note:

The regulator should be sited as close as possible to the equipment it is serving. Connect the regulator so that air flow is in the direction

shown by the arrow on the body. A pressure gauge (supplied as an accessory, when ordered) fitted to one of the gauge ports is

recommended to show the secondary pressure. A filter should be installed in front of the regulator to keep dirt out.

Panel mounting the MR2M

The panel must not exceed 8 mm thick. The required hole is 31 mm.

How to order

Example: 1 off MR1M Monnier miniature compressed air regulator having 1⁄4" screwed BSP connections and a 0.2 to 2 bar control spring.

Note: The MR1M or MR2M regulator will be supplied with a 0.7 to 9 bar spring as standard.

TI-P504-09 CH Issue 2 MR1M, MRN1M and MR2M Monnier Miniature Compressed Air Regulators

Page 3 of 3
