Compressed air products

Filters

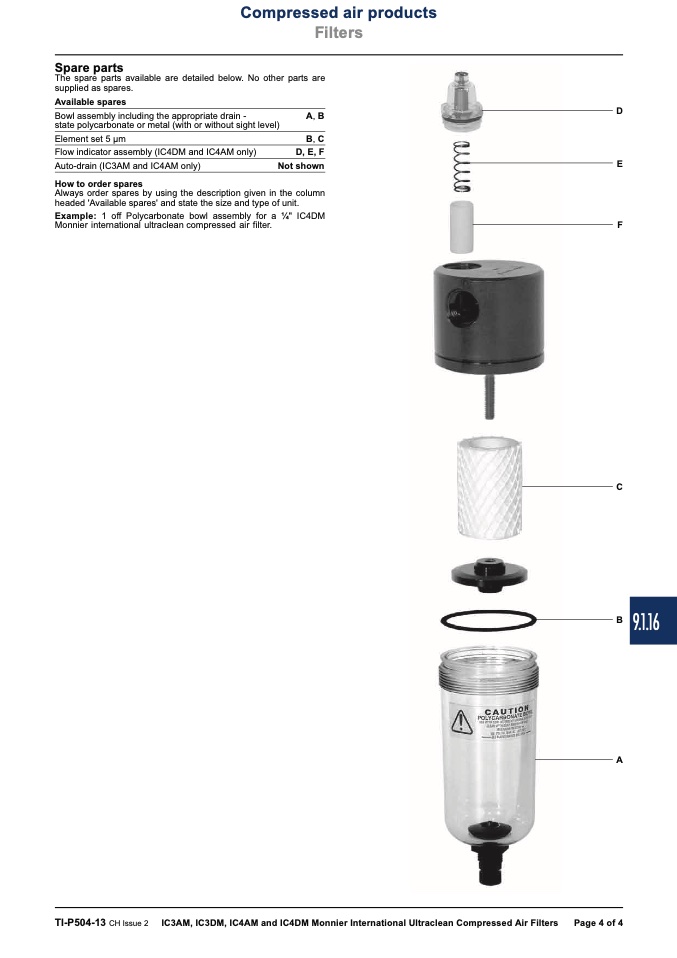

Spare parts

The spare parts available are detailed below. No other parts are

supplied as spares.

Available spares

Bowl assembly including the appropriate drain -

state polycarbonate or metal (with or without sight level)

A, B

D

E

F

B, C

D, E, F

Not shown

Always order spares by using the description given in the column

headed 'Available spares' and state the size and type of unit.

Example: 1 off Polycarbonate bowl assembly for a 1⁄4" IC4DM

Monnier international ultraclean compressed air filter.

Element set 5 μm

Flow indicator assembly (IC4DM and IC4AM only)

Auto-drain (IC3AM and IC4AM only)

How to order spares

C

B

A

TI-P504-13 CH Issue 2 IC3AM, IC3DM, IC4AM and IC4DM Monnier International Ultraclean Compressed Air Filters

Page 4 of 4

9.1.16
