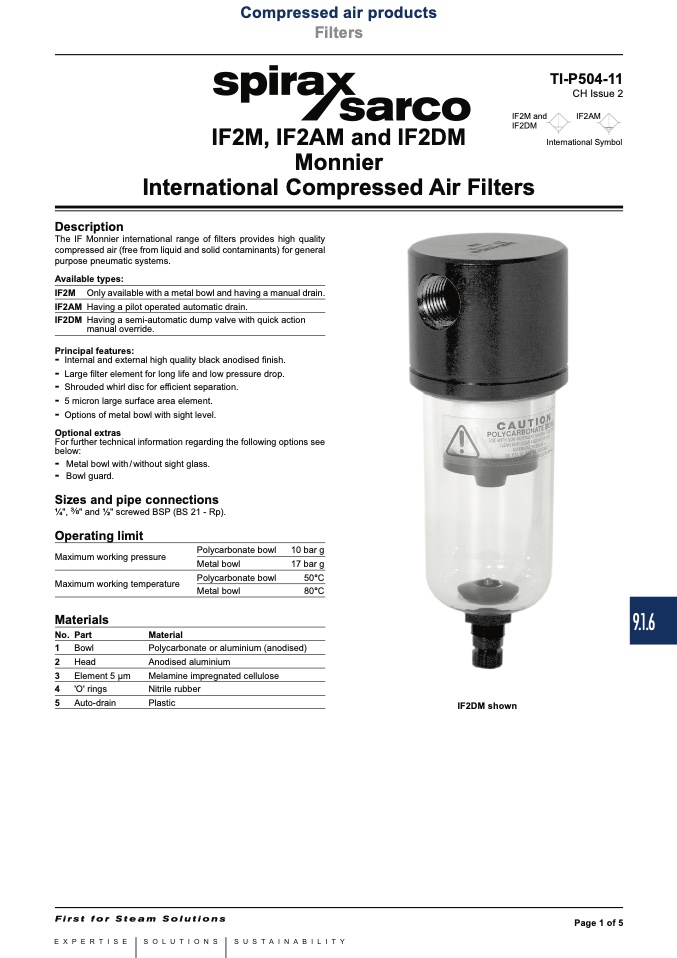

Compressed air products

IF2M, IF2AM and IF2DM

Monnier

International Compressed Air Filters

Local regulations may restrict the use of this product to below the conditions quoted.

In the interests of development and improvement of the product, we reserve the right to change the specification without notice.

© Copyright 2012

Filters

TI-P504-11

CH Issue 2

IF2M and

IF2AM

IF2DM

International Symbol

Description

The IF Monnier international range of filters provides high quality

compressed air (free from liquid and solid contaminants) for general

purpose pneumatic systems.

Available types:

IF2M Only available with a metal bowl and having a manual drain.

IF2AM Having a pilot operated automatic drain.

IF2DM Having a semi-automatic dump valve with quick action

manual override.

Principal features:

-

Internal and external high quality black anodised finish.

-

Large filter element for long life and low pressure drop.

-

Shrouded whirl disc for efficient separation.

-

5 micron large surface area element.

-

Options of metal bowl with sight level.

Optional extras

For further technical information regarding the following options see

below:

-

Metal bowl with/without sight glass.

-

Bowl guard.

Sizes and pipe connections

1⁄4", " and 1⁄2" screwed BSP (BS 21 - Rp).

Operating limit

Maximum working pressure

Maximum working temperature

Polycarbonate bowl

Metal bowl

Polycarbonate bowl

Metal bowl

10 bar g

17 bar g

50°C

80°C

Materials

No. Part

1 Bowl

2 Head

3 Element 5 μm

4 'O' rings

5 Auto-drain

Material

Polycarbonate or aluminium (anodised)

Anodised aluminium

Melamine impregnated cellulose

Nitrile rubber

Plastic

IF2DM shown

Page 1 of 5

9.1.6
