Pipeline ancillaries

Hosedown stations

Dimensions/weight (approximate) in mm and kg

Size

A

B

C

D

Weight

1⁄2"

270

152

40

50

1.5

B

Spare parts

The spare parts available are shown in heavy outline. Parts drawn

in broken line are not supplied as spares.

Available spare

Element set

Always order spares by using the description given in the column

headed 'Available spare' and state the size and type of control.

Example: 1 - Element set for a 1⁄2" Spirax Sarco thermocirc.

See the Installation and Maintenance Instructions (IM-P157-36)

supplied with each thermocirc.

3, 4, 5, 6, 8, 11, 12

D

How to order spares

C

Capacities

����

����

����

����

How to fit spares

A

����

��

�

�

�

�

�

�

�

�

�

�

����������

Differential pressure bar (x 100 = kPa)

Safety information, installation and maintenace

For full details see the Installation and Maintenance Instructions

(IM-P157-36) supplied with the product.

Note: A strainer and check valve should always be fitted in the steam

inlet pipework prior to entry into the thermocirc as shown below.

Adjustment nut (13)

Lock-nut (14)

11

8, 12

Tank

Thermocirc

Check

valve

Angle

strainer

3, 4, 5, 6

Nut (10)

Typical installation showing a thermocirc

fitted directly to a small hot water tank.

Disposal

Steam supply

Recommended tightening torques

or

mm

The product is recyclable. No ecological hazard is anticipated with

the disposal of this product, providing due care is taken, with

exception to the element (8) which should be disposed of separately

as it contains a parafin fill.

How to order

Example: 1 off 1⁄2" Spirax Sarco thermocirc with copper alloy (LG2)

body and screwed BSP connections.

Item

Nm

3

10

14

30 - 35

80 - 85

80 - 85

1

15

/

32

" A/F

1

15

/

32

" A/F

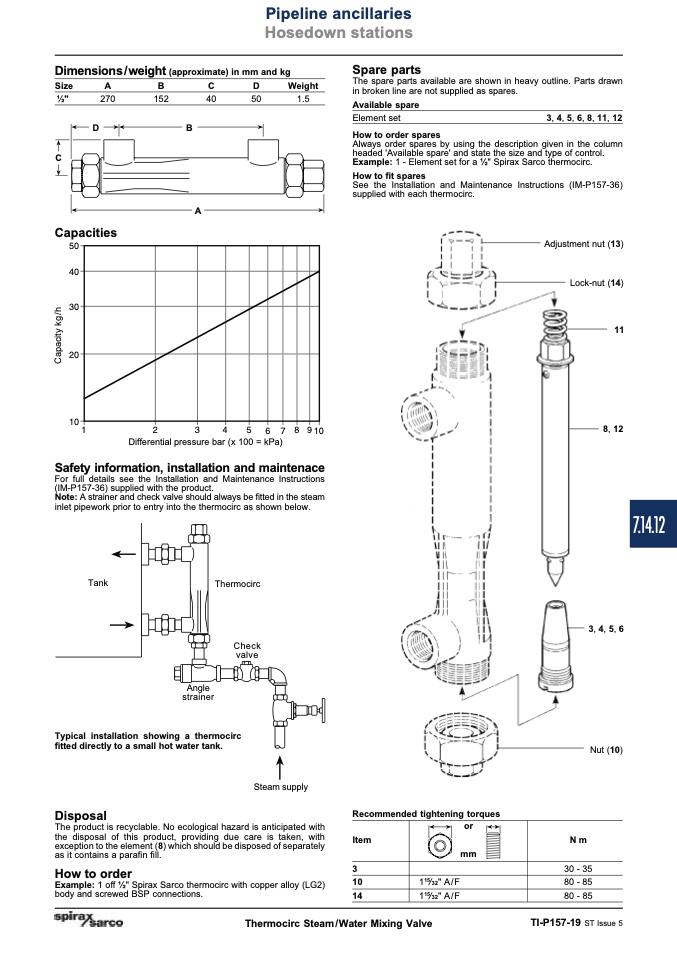

Thermocirc Steam/Water Mixing Valve

TI-P157-19 ST Issue 5

7.14.12
