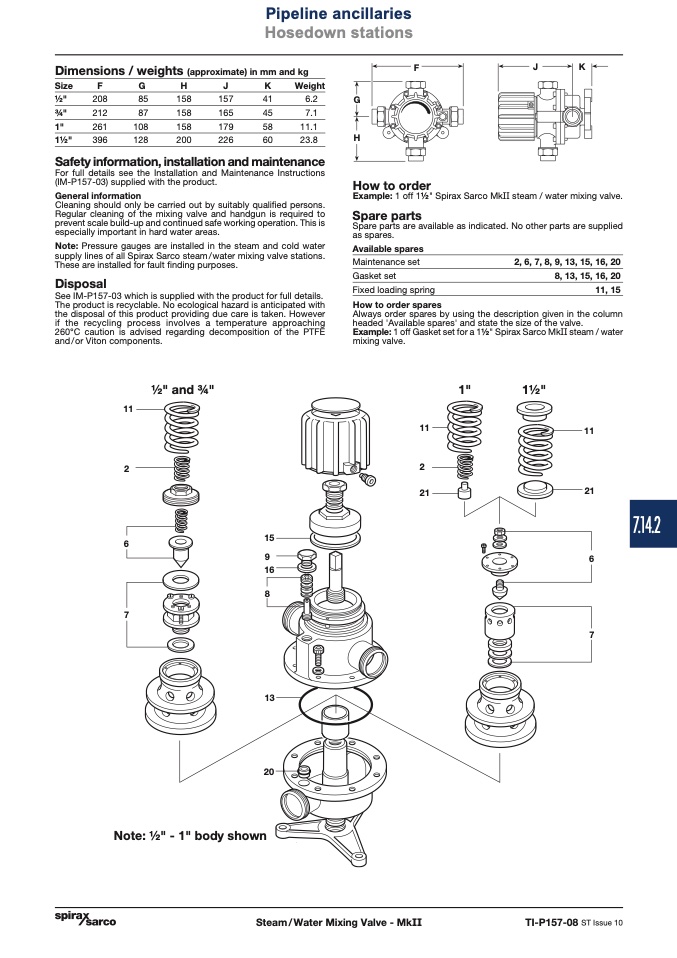

Pipeline ancillaries

Hosedown stations

Dimensions / weights (approximate) in mm and kg

F

J

K

Size

F

G

H

1⁄2"

208

85

158

3⁄4"

212

87

158

1"

261

108

158

11⁄2"

396

128

200

J

K

Weight

157

41

6.2

G

165

45

7.1

179

58

11.1

226

60

23.8

Safety information, installation and maintenance

For full details see the Installation and Maintenance Instructions

(IM-P157-03) supplied with the product.

General information

Cleaning should only be carried out by suitably qualified persons.

Regular cleaning of the mixing valve and handgun is required to

prevent scale build-up and continued safe working operation. This is

especially important in hard water areas.

Note: Pressure gauges are installed in the steam and cold water

supply lines of all Spirax Sarco steam/water mixing valve stations.

These are installed for fault finding purposes.

Disposal

See IM-P157-03 which is supplied with the product for full details.

The product is recyclable. No ecological hazard is anticipated with

the disposal of this product providing due care is taken. However

if the recycling process involves a temperature approaching

260°C caution is advised regarding decomposition of the PTFE

and/or Viton components.

H

How to order

Example: 1 off 11⁄2" Spirax Sarco MkII steam / water mixing valve.

Spare parts

Spare parts are available as indicated. No other parts are supplied

as spares.

11

2

6

7

11

2

21

11

21

7.14.2

1⁄2" and 3⁄4"

1"

11⁄2"

Note: 1⁄2" - 1" body shown

15

9

16

8

13

20

6

7

Steam/Water Mixing Valve - MkII

TI-P157-08 ST Issue 10

Available spares

Maintenance set

Gasket set

Fixed loading spring

How to order spares

2, 6, 7, 8, 9, 13, 15, 16, 20

8, 13, 15, 16, 20

11, 15

Always order spares by using the description given in the column

headed 'Available spares' and state the size of the valve.

Example: 1 off Gasket set for a 11⁄2" Spirax Sarco MkII steam / water

mixing valve.
