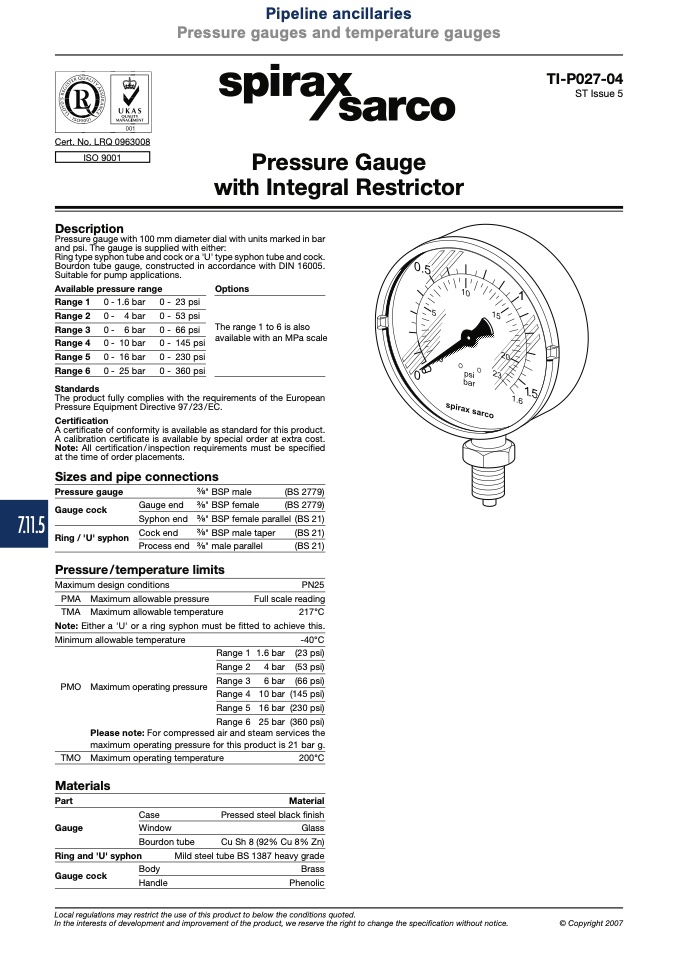

Pipeline ancillaries

Pressure gauges and temperature gauges

7.11.5

ISO 9001

TI-P027-04

ST Issue 5

Cert. No. LRQ 0963008

Description

Pressure Gauge

with Integral Restrictor

Pressure gauge with 100 mm diameter dial with units marked in bar

and psi. The gauge is supplied with either:

Ring type syphon tube and cock or a 'U' type syphon tube and cock.

Bourdon tube gauge, constructed in accordance with DIN 16005.

Suitable for pump applications.

Available pressure range

Options

The range 1 to 6 is also

available with an MPa scale

�

Range 1

Range 2

Range 3

Range 4

Range 5

Range 6

Standards

0- 1.6 bar

0-

0- 4 bar

0-

0- 6 bar

0-

0- 10 bar

0-

0- 16 bar

0-

0- 25 bar

0-

23 psi

53 psi

66 psi

145 psi

230 psi

360 psi

The product fully complies with the requirements of the European

Pressure Equipment Directive 97/23/EC.

Certification

A certificate of conformity is available as standard for this product.

A calibration certificate is available by special order at extra cost.

Note: All certification/inspection requirements must be specified

at the time of order placements.

Sizes and pipe connections

Pressure gauge

Gauge cock

Ring / 'U' syphon

Gauge end

Syphon end

Cock end

Process end

" BSP male

(BS 2779)

" BSP female

(BS 2779)

" BSP female parallel (BS 21)

" BSP male taper

" male parallel

(BS 21)

(BS 21)

Pressure/temperature limits

Maximum design conditions

PMA Maximum allowable pressure

TMA Maximum allowable temperature

PN25

Full scale reading

217°C

Note: Either a 'U' or a ring syphon must be fitted to achieve this.

Minimum allowable temperature

PMO Maximum operating pressure

Range 1

Range 2

Range 3

Range 4

Range 5

Range 6

1.6 bar

4 bar

6 bar

-40°C

(23 psi)

(53 psi)

(66 psi)

10 bar (145 psi)

16 bar (230 psi)

25 bar (360 psi)

Please note: For compressed air and steam services the

maximum operating pressure for this product is 21 bar g.

TMO Maximum operating temperature

200°C

Materials

Part

Case

Gauge

Window

Bourdon tube

Ring and 'U' syphon

Material

Gauge cock

Body

Handle

Pressed steel black finish

Glass

Cu Sh 8 (92% Cu 8% Zn)

Mild steel tube BS 1387 heavy grade

Brass

Phenolic

Local regulations may restrict the use of this product to below the conditions quoted.

In the interests of development and improvement of the product, we reserve the right to change the specification without notice.

© Copyright 2007
