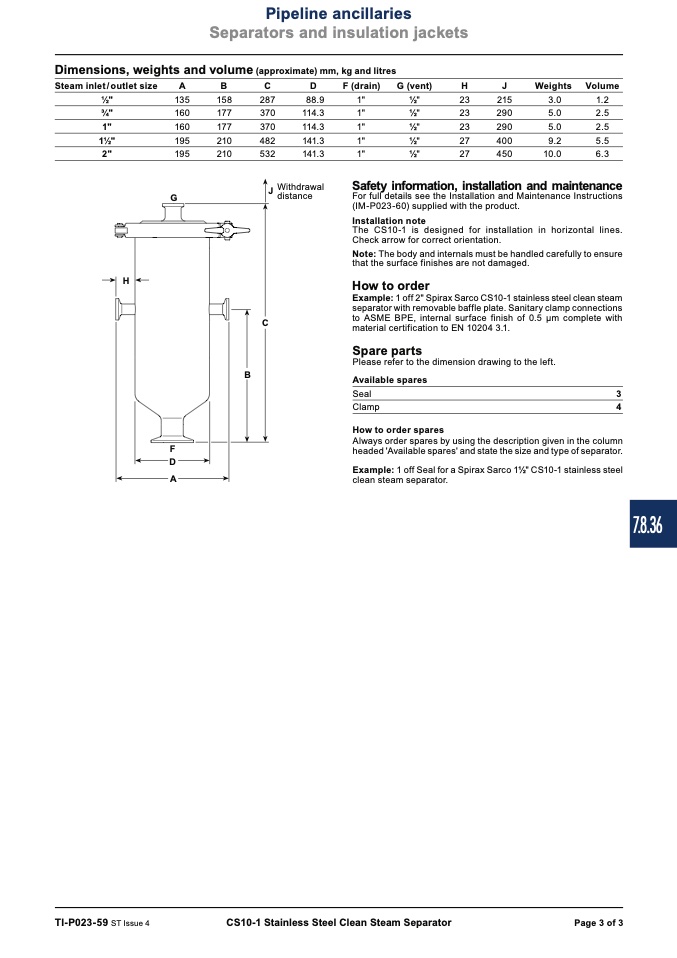

Pipeline ancillaries

Separators and insulation jackets

Dimensions, weights and volume (approximate) mm, kg and litres

Steam inlet / outlet size

1⁄2"

3⁄4"

1"

11⁄2"

2"

H

A

135

160

160

195

195

G

B

158

177

177

210

210

C

287

370

370

482

532

D

88.9

114.3

114.3

141.3

141.3

F (drain)

1"

1"

1"

1"

1"

G (vent)

1⁄2"

1⁄2"

1⁄2"

1⁄2"

1⁄2"

H

J

23

215

23

290

23

290

27

400

27

450

Weights Volume

3.0

1.2

5.0

2.5

5.0

2.5

9.2

5.5

10.0

6.3

J

Withdrawal

distance

C

B

Safety information, installation and maintenance

For full details see the Installation and Maintenance Instructions

(IM-P023-60) supplied with the product.

The CS10-1 is designed for installation in horizontal lines.

Check arrow for correct orientation.

Note: The body and internals must be handled carefully to ensure

that the surface finishes are not damaged.

How to order

Example: 1 off 2" Spirax Sarco CS10-1 stainless steel clean steam

separator with removable baffle plate. Sanitary clamp connections

to ASME BPE, internal surface finish of 0.5 μm complete with

material certification to EN 10204 3.1.

Spare parts

Please refer to the dimension drawing to the left.

Available spares

Seal

3

Clamp

4

How to order spares

Always order spares by using the description given in the column

headed 'Available spares' and state the size and type of separator.

Example: 1 off Seal for a Spirax Sarco 11⁄2" CS10-1 stainless steel

clean steam separator.

Installation note

F

D

A

TI-P023-59 ST Issue 4

CS10-1 Stainless Steel Clean Steam Separator

Page 3 of 3

7.8.36
