Pipeline ancillaries

Separators and insulation jackets

7.8.31

ISO 9001

TI-P119-01

ST Issue 6

Cert. No. LRQ 0963008

IJ and IJ-H

Insulation Jackets

for Flanges

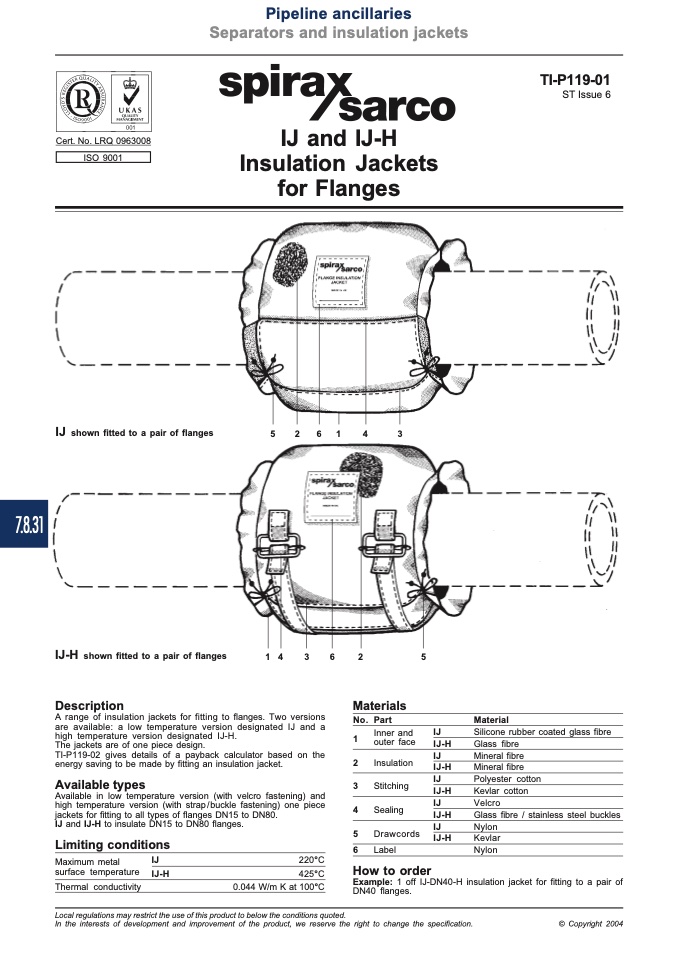

IJ shown fitted to a pair of flanges

5

2

6

1

4

3

IJ-Hshownfittedtoapairofflanges

Description

1 4

3

6

2

Materials

No. Part

1

Inner and

outer face

2 Insulation

3 Stitching

4 Sealing

5 Drawcords

6 Label

5

A range of insulation jackets for fitting to flanges. Two versions

are available: a low temperature version designated IJ and a

high temperature version designated IJ-H.

The jackets are of one piece design.

IJ

IJ-H

IJ

IJ-H

IJ

IJ-H

IJ

IJ-H

IJ

IJ-H

Material

TI-P119-02 gives details of a payback calculator based on the

energy saving to be made by fitting an insulation jacket.

Available types

Available in low temperature version (with velcro fastening) and

high temperature version (with strap / buckle fastening) one piece

jackets for fitting to all types of flanges DN15 to DN80.

IJ and IJ-H to insulate DN15 to DN80 flanges.

Silicone rubber coated glass fibre

Glass fibre

Mineral fibre

Mineral fibre

Polyester cotton

Kevlar cotton

Velcro

Glass fibre / stainless steel buckles

Nylon

Kevlar

Nylon

Limiting conditions

Maximum metal

IJ

surface temperature IJ-H

Thermal conductivity

220°C

425°C

0.044 W/m K at 100°C

How to order

Example: 1 off IJ-DN40-H insulation jacket for fitting to a pair of

DN40 flanges.

Local regulations may restrict the use of this product to below the conditions quoted.

In the interests of development and improvement of the product, we reserve the right to change the specification.

© Copyright 2004
