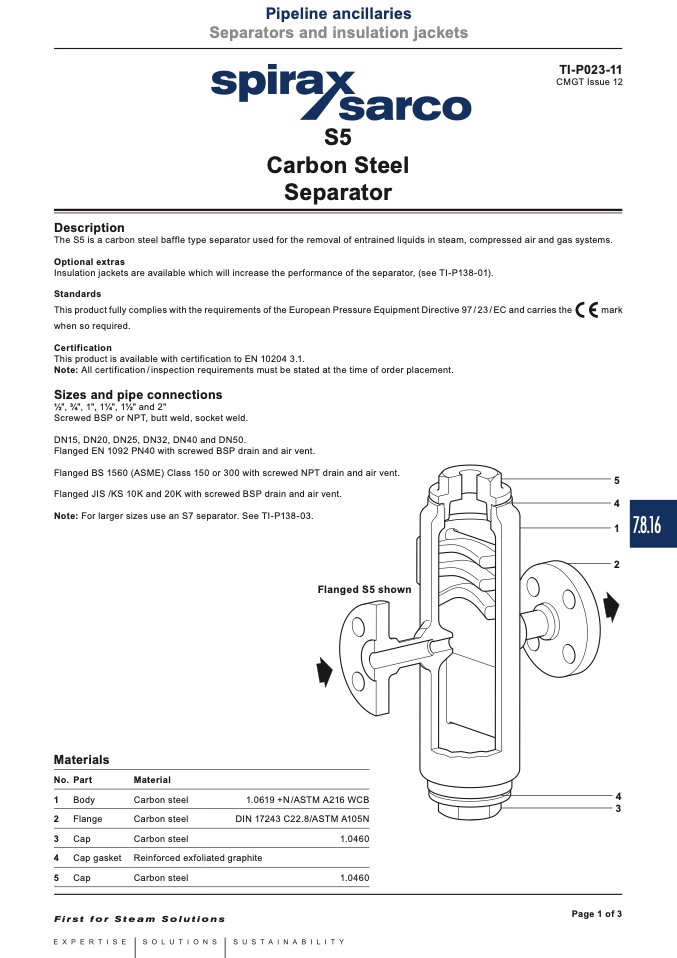

Pipeline ancillaries

Local regulations may restrict the use of this product to below the conditions quoted.

Separators and insulation jackets

In the interests of development and improvement of the product, we reserve the right to change the specification without notice. © Copyright 2017

TI-P023-11

CMGT Issue 12

Description

S5

Carbon Steel

Separator

The S5 is a carbon steel baffle type separator used for the removal of entrained liquids in steam, compressed air and gas systems.

Optional extras

Insulation jackets are available which will increase the performance of the separator, (see TI-P138-01).

Standards

This product fully complies with the requirements of the European Pressure Equipment Directive 97 / 23 / EC and carries the

mark

when so required.

Certification

This product is available with certification to EN 10204 3.1.

Note: All certification/inspection requirements must be stated at the time of order placement.

Sizes and pipe connections

1⁄2", 3⁄4", 1", 11⁄4", 11⁄2" and 2"

Screwed BSP or NPT, butt weld, socket weld.

DN15, DN20, DN25, DN32, DN40 and DN50.

Flanged EN 1092 PN40 with screwed BSP drain and air vent.

Flanged BS 1560 (ASME) Class 150 or 300 with screwed NPT drain and air vent.

Flanged JIS /KS 10K and 20K with screwed BSP drain and air vent.

Note: For larger sizes use an S7 separator. See TI-P138-03.

5

4

1

2

Flanged S5 shown

Materials

No. Part

1 Body

2 Flange

3 Cap

4 Cap gasket

5 Cap

Material

Carbon steel

Carbon steel

Carbon steel

Reinforced exfoliated graphite

3

4

1.0619 +N /ASTM A216 WCB

DIN 17243 C22.8/ASTM A105N

1.0460

Carbon steel

1.0460

Page 1 of 3

7.8.16
