Boiler house

Conductivity sensors

Local regulations may restrict the use of this product to below the conditions quoted.

In the interests of development and improvement of the product, we reserve the right to change the specification without notice. © Copyright 2014

2.5.5

EN 1092

PN16

PN40

Table F

Part No.

Part No.

Part No.

4032460

4032460

4032460

4032461

4032461

4032461

4032462

4032462

4032492

4032463

4032463

4032493

4032464

4032464

4032494

4032465

4032465

4032465

4032467

4032467

4032497

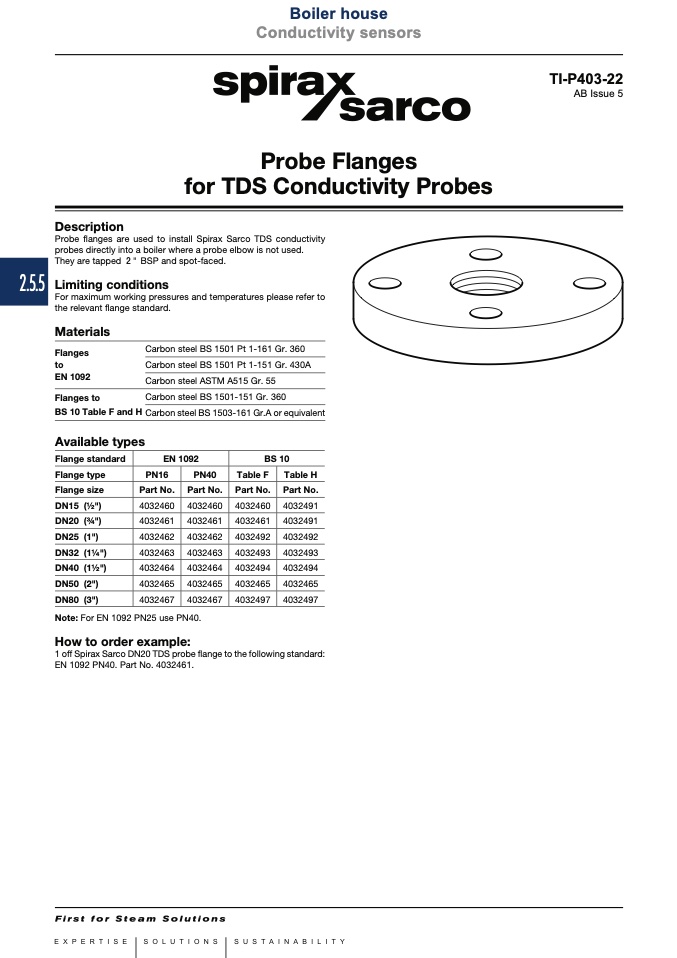

TI-P403-22

AB Issue 5

Probe Flanges

for TDS Conductivity Probes

Description

Probe flanges are used to install Spirax Sarco TDS conductivity

probes directly into a boiler where a probe elbow is not used.

They are tapped 2" BSP and spot-faced.

Limiting conditions

For maximum working pressures and temperatures please refer to

the relevant flange standard.

Materials

Flanges

to

EN 1092

Flanges to

BS 10 Table F and H

Available types

Flange standard

Flange type

Flange size

DN15 (1⁄2")

DN20 (3⁄4")

DN25 (1")

DN32 (11⁄4")

DN40 (11⁄2")

DN50 (2")

DN80 (3")

Note: For EN 1092 PN25 use PN40.

How to order example:

Carbon steel BS 1501 Pt 1-161 Gr. 360

Carbon steel BS 1501 Pt 1-151 Gr. 430A

Carbon steel ASTM A515 Gr. 55

Carbon steel BS 1501-151 Gr. 360

Carbon steel BS 1503-161 Gr.A or equivalent

BS 10

Table H

Part No.

4032491

4032491

4032492

4032493

4032494

4032465

4032497

1 off Spirax Sarco DN20 TDS probe flange to the following standard:

EN 1092 PN40. Part No. 4032461.
