Pipeline ancillaries
Strainers and filters
Local regulations may restrict the use of this product to below the conditions quoted.
In the interests of development and improvement of the product, we reserve the right to change the specification without notice.
© Copyright 2012
TI-P185-01
ST Issue 12

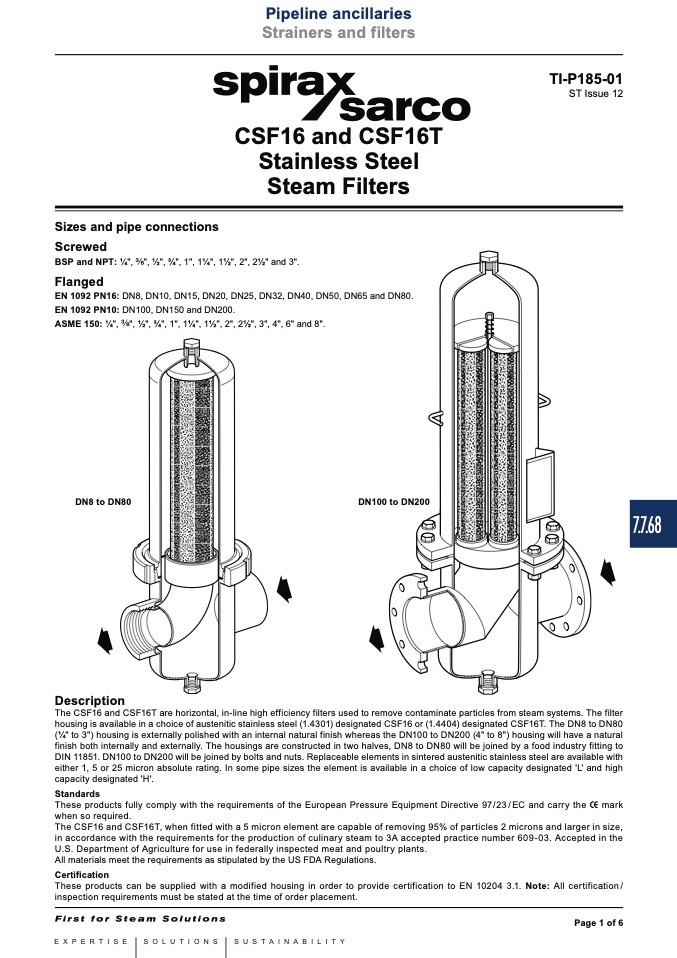

CSF16 and CSF16T
Stainless Steel
Steam Filters
Sizes and pipe connections
Screwed
BSP and NPT: 1⁄4", ", 1⁄2", 3⁄4", 1", 11⁄4", 11⁄2", 2", 21⁄2" and 3".
Flanged
EN 1092 PN16: DN8, DN10, DN15, DN20, DN25, DN32, DN40, DN50, DN65 and DN80.
EN 1092 PN10: DN100, DN150 and DN200.
ASME 150: 1⁄4", ", 1⁄2", 3⁄4", 1", 11⁄4", 11⁄2", 2", 21⁄2", 3", 4", 6" and 8".
DN8 to DN80
DN100 to DN200
Description
The CSF16 and CSF16T are horizontal, in-line high efficiency filters used to remove contaminate particles from steam systems. The filter
housing is available in a choice of austenitic stainless steel (1.4301) designated CSF16 or (1.4404) designated CSF16T. The DN8 to DN80
(1⁄4" to 3") housing is externally polished with an internal natural finish whereas the DN100 to DN200 (4" to 8") housing will have a natural
finish both internally and externally. The housings are constructed in two halves, DN8 to DN80 will be joined by a food industry fitting to
DIN 11851. DN100 to DN200 will be joined by bolts and nuts. Replaceable elements in sintered austenitic stainless steel are available with
either 1, 5 or 25 micron absolute rating. In some pipe sizes the element is available in a choice of low capacity designated 'L' and high
capacity designated 'H'.
Standards
These products fully comply with the requirements of the European Pressure Equipment Directive 97/23/EC and carry the mark
when so required.
The CSF16 and CSF16T, when fitted with a 5 micron element are capable of removing 95% of particles 2 microns and larger in size,
in accordance with the requirements for the production of culinary steam to 3A accepted practice number 609-03. Accepted in the
U.S. Department of Agriculture for use in federally inspected meat and poultry plants.
All materials meet the requirements as stipulated by the US FDA Regulations.
Certification
These products can be supplied with a modified housing in order to provide certification to EN 10204 3.1. Note: All certification/
inspection requirements must be stated at the time of order placement.
Page 1 of 6
7.7.68
