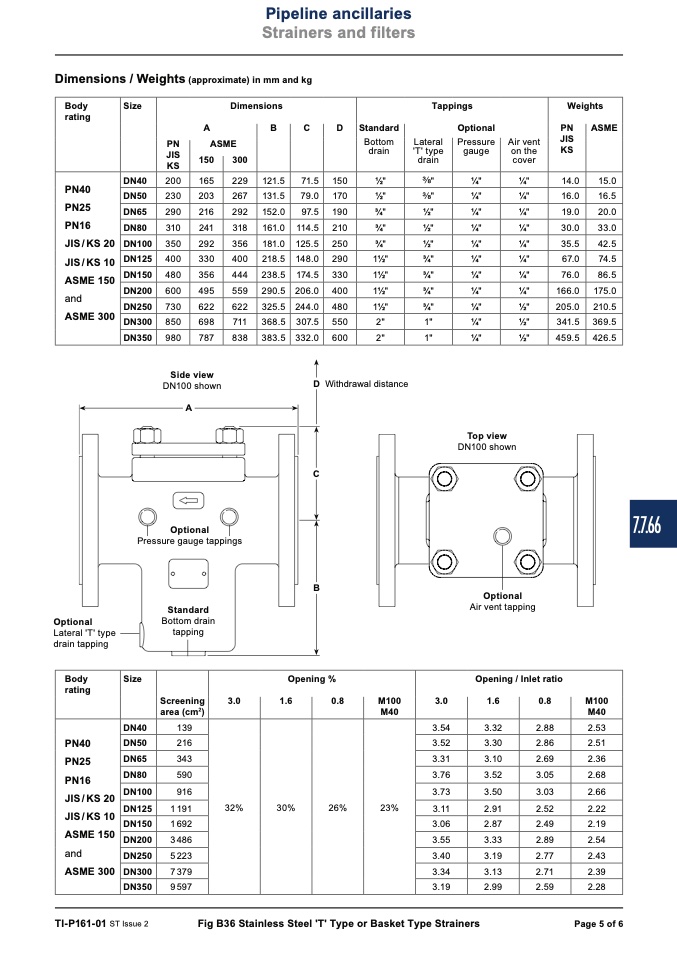

Pipeline ancillaries
Strainers and filters
Dimensions / Weights (approximate) in mm and kg
Body
rating
Size
Dimensions
A
B
C
D
PN
ASME
JIS
KS
150
300
Standard
Bottom
drain
Tappings
Optional
Lateral
'T' type
drain
Pressure
gauge
Air vent
on the
cover
Weights
PN
ASME
JIS
KS
PN40
PN25
PN16
JIS/KS 20
JIS/KS 10
ASME 150
and
ASME 300
DN40
200
165
229
121.5 71.5 150 1⁄2"
"
1⁄4"
1⁄4"
14.0
15.0
DN50
230
203
267
131.5 79.0 170 1⁄2"
"
1⁄4"
1⁄4"
16.0
16.5
DN65
290
216
292
152.0 97.5 190 3⁄4"
1⁄2"
1⁄4"
1⁄4"
19.0
20.0
DN80
310
241
318
161.0 114.5 210 3⁄4"
1⁄2"
1⁄4"
1⁄4"
30.0
33.0
DN100
350
292
356
181.0 125.5 250 3⁄4"
1⁄2"
1⁄4"
1⁄4"
35.5
42.5
DN125
400 330
400 218.5 148.0 290 11⁄2"
3⁄4" 1⁄4"
1⁄4"
67.0 74.5
DN150
480
356
444
238.5 174.5 330 11⁄2"
3⁄4"
1⁄4"
1⁄4"
76.0
86.5
DN200
600
495
559
290.5 206.0 400 11⁄2"
3⁄4"
1⁄4"
1⁄4"
166.0
175.0
DN250
730
622
622
325.5 244.0 480 11⁄2"
3⁄4"
1⁄4"
1⁄2"
205.0
210.5
DN300
850
698
711
368.5 307.5 550 2"
1"
1⁄4"
1⁄2"
341.5
369.5
DN350
980 787
838 383.5 332.0 600 2"
1" 1⁄4"
1⁄2"
459.5 426.5
Side view
DN100 shown
A
Optional
Pressure gauge tappings
Standard
Bottom drain
tapping
D Withdrawal distance
C
B
Top view
DN100 shown
Optional
Air vent tapping
Optional
Lateral 'T' type
drain tapping
Body
rating
Size
Screening
area (cm
2
)
Opening %
3.0
1.6
0.8
M100
M40
Opening / Inlet ratio
3.0
1.6
0.8
M100
M40
PN40
PN25
PN16
JIS/KS 20
JIS/KS 10
ASME 150
and
ASME 300
DN40 139
32% 30%
26%
23%
3.54
3.32
2.88 2.53
DN50 216 3.52
3.30 2.86 2.51
DN65 343
3.31
3.10
2.69 2.36
DN80 590 3.76
3.52 3.05 2.68
DN100 916 3.73
3.50 3.03 2.66
DN125 1 191
3.11
2.91
2.52 2.22
DN150 1 692
3.06
2.87
2.49 2.19
DN200 3 486
3.55
3.33
2.89 2.54
DN250 5 223
3.40
3.19
2.77 2.43
DN300 7 379 3.34
3.13 2.71 2.39
DN350 9 597
3.19
2.99
2.59 2.28
TI-P161-01 ST Issue 2
Fig B36 Stainless Steel 'T' Type or Basket Type Strainers
Page 5 of 6
