Safety information, installation and maintenance

For full details see the Installation and Maintenance Instructions

(IM-S60-18) supplied with the product.

Installation note:

The strainer should be installed in the direction of flow, as

indicated on the body. On applications involving steam or gases

the pocket should be in horizontal plane. On liquid systems the

pocket should point downwards.

Warning:

The strainer cover gasket contains a thin stainless steel support

ring, which may cause physical injury if not handled and disposed

of carefully.

Disposal

This product is recyclable. No ecological hazard is anticipated

with the disposal of this product, provided due care is taken.

How to order

Example: 1 off Spirax Sarco DN40 Fig 36HP strainer having the

standard stainless steel screen with 0.8 mm perforations and

flanged EN 1092 PN100 connections.

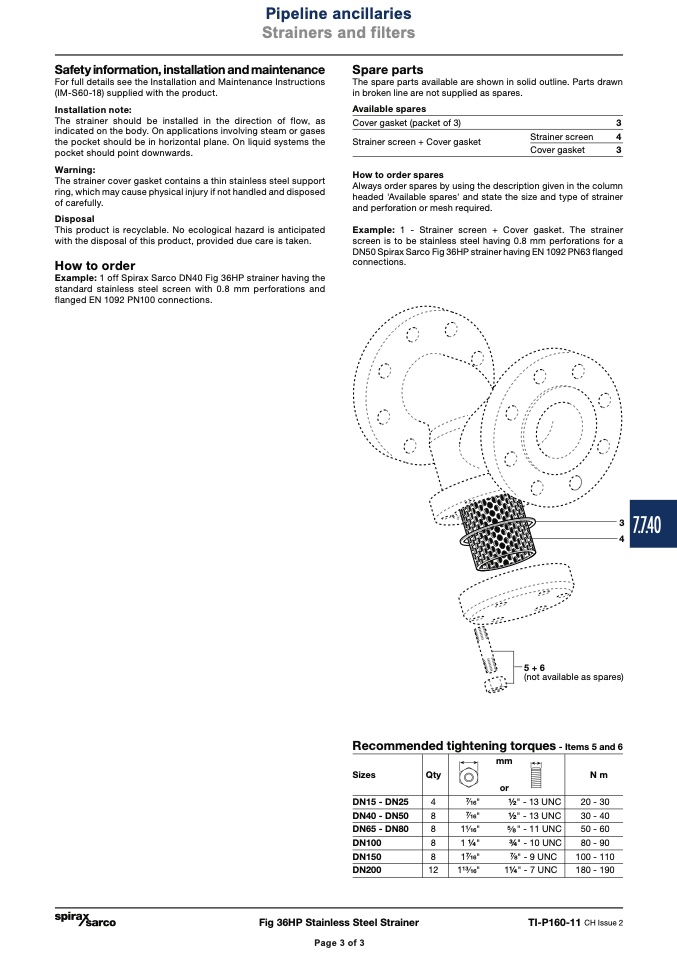

Spare parts

The spare parts available are shown in solid outline. Parts drawn

in broken line are not supplied as spares.

Available spares

Cover gasket (packet of 3)

3

Pipeline ancillaries

Strainers and filters

Page 3 of 3

Fig 36HP Stainless Steel Strainer

TI-P160-11 CH Issue 2

Page 3 of 3

Strainer screen + Cover gasket

How to order spares

Strainer screen

4

Cover gasket

3

Always order spares by using the description given in the column

headed 'Available spares' and state the size and type of strainer

and perforation or mesh required.

Example: 1 - Strainer screen + Cover gasket. The strainer

screen is to be stainless steel having 0.8 mm perforations for a

DN50 Spirax Sarco Fig 36HP strainer having EN 1092 PN63 flanged

connections.

3

4

7.7.40

(not available as spares)

Recommended tightening torques - Items 5 and 6

mm

Sizes

DN15 -

DN40 -

DN65 -

DN100

DN150

DN200

DN25

DN50

DN80

Qty

4

"

8

"

8

1

"

8

1 1⁄4"

8

1

"

12

1

"

or

1⁄2" - 13 UNC

1⁄2" - 13 UNC

" - 11 UNC

3⁄4" - 10 UNC

" - 9 UNC

11⁄4" - 7 UNC

N m

20 - 30

30 - 40

50 - 60

80 - 90

100 - 110

180 - 190

5+ 6
