Pipeline ancillaries

Strainers and filters

7.7.13

ISO 9001

Steam

saturation

curve

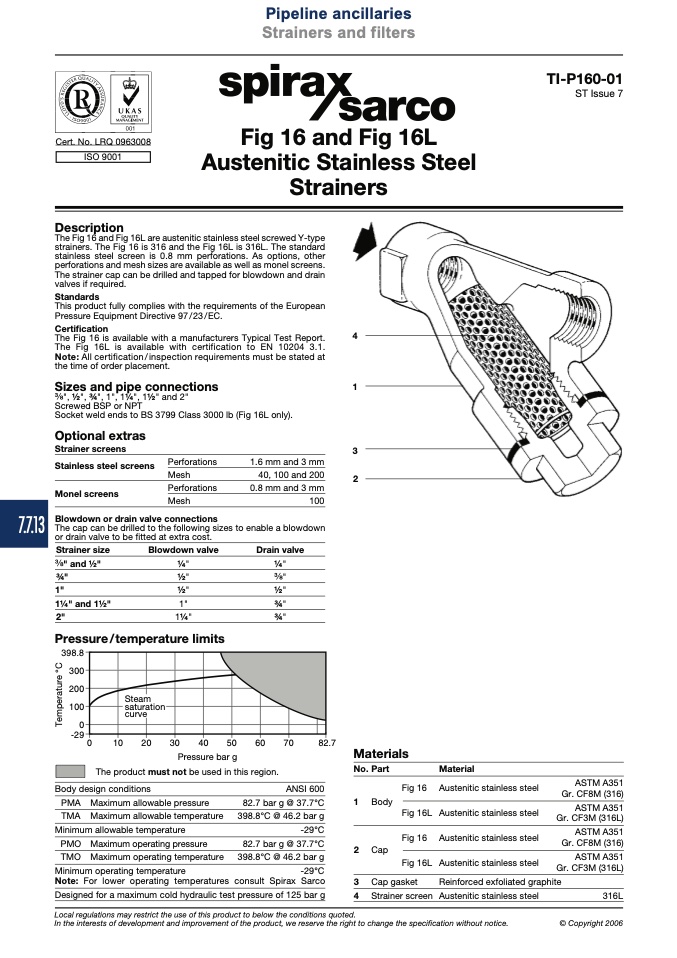

TI-P160-01

ST Issue 7

Cert. No. LRQ 0963008

Description

The Fig 16 and Fig 16L are austenitic stainless steel screwed Y-type

strainers. The Fig 16 is 316 and the Fig 16L is 316L. The standard

stainless steel screen is 0.8 mm perforations. As options, other

perforations and mesh sizes are available as well as monel screens.

The strainer cap can be drilled and tapped for blowdown and drain

valves if required.

Standards

This product fully complies with the requirements of the European

Pressure Equipment Directive 97/23/EC.

Fig 16 and Fig 16L

Austenitic Stainless Steel

Strainers

Certification

Sizes and pipe connections

", 1⁄2", 3⁄4", 1", 11⁄4", 11⁄2" and 2"

The Fig 16 is available with a manufacturers Typical Test Report.

The Fig 16L is available with certification to EN 10204 3.1.

Note: All certification/inspection requirements must be stated at

the time of order placement.

Screwed BSP or NPT

Socket weld ends to BS 3799 Class 3000 lb (Fig 16L only).

Optional extras

Strainer screens

Stainless steel screens

Monel screens

Perforations

Mesh

Perforations

Mesh

1.6 mm and 3 mm

40, 100 and 200

0.8 mm and 3 mm

100

Blowdown or drain valve connections

The cap can be drilled to the following sizes to enable a blowdown

or drain valve to be fitted at extra cost.

Strainer size

Blowdown valve

Drain valve

" and 1⁄2"

1⁄4"

3⁄4"

1⁄2"

11⁄4" and 11⁄2"

3⁄4"

11⁄4"

3⁄4"

Pressure/temperature limits

��

�

��

�

��

Materials

No. Part

Pressure bar g

The product must not be used in this region.

Material

Austenitic stainless steel

ASTM A351

Gr. CF8M (316)

ASTM A351

Gr. CF3M (316L)

ASTM A351

Gr. CF8M (316)

ASTM A351

Gr. CF3M (316L)

Body design conditions

PMA Maximum allowable pressure

TMA Maximum allowable temperature

Minimum allowable temperature

PMO Maximum operating pressure

TMO Maximum operating temperature

ANSI 600

82.7 bar g @ 37.7°C

398.8°C @ 46.2 bar g

-29°C

82.7 bar g @ 37.7°C

398.8°C @ 46.2 bar g

Fig 16

Fig 16L

Fig 16

2 Cap

Fig 16L

3 Cap gasket

4 Strainer screen

1 Body

-29°C

Note: For lower operating temperatures consult Spirax Sarco

Minimum operating temperature

Designed for a maximum cold hydraulic test pressure of 125 bar g

Reinforced exfoliated graphite

Austenitic stainless steel

316L

Local regulations may restrict the use of this product to below the conditions quoted.

In the interests of development and improvement of the product, we reserve the right to change the specification without notice.
