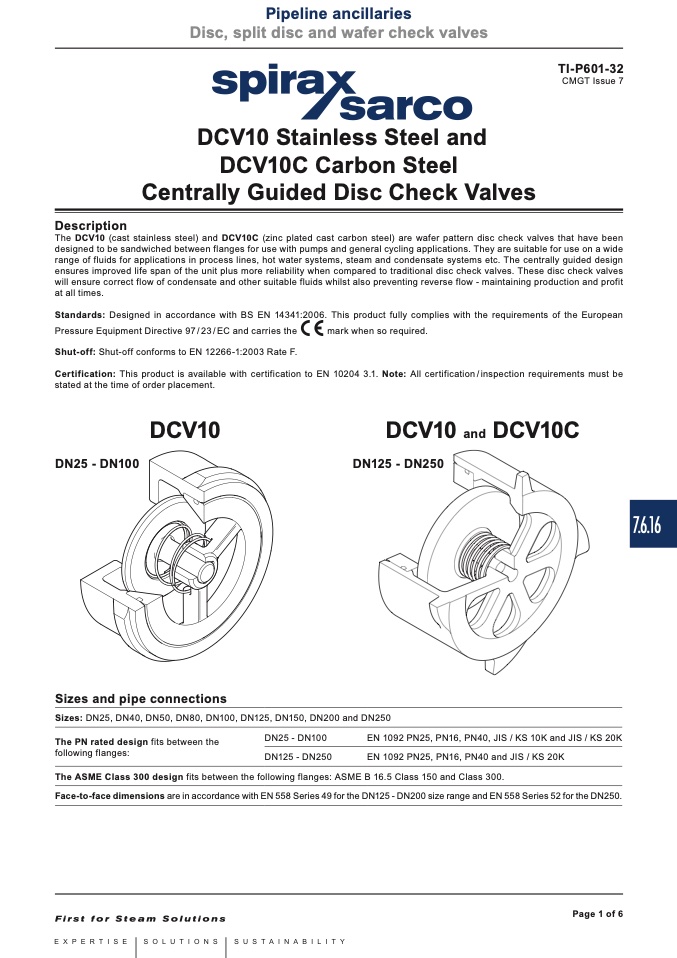

Pipeline ancillaries

Local regulations may restrict the use of this product to below the conditions quoted.

Disc, split disc and wafer check valves

In the interests of development and improvement of the product, we reserve the right to change the specification without notice. © Copyright 2017

TI-P601-32

CMGT Issue 7

DCV10 Stainless Steel and

DCV10C Carbon Steel

Centrally Guided Disc Check Valves

Description

The DCV10 (cast stainless steel) and DCV10C (zinc plated cast carbon steel) are wafer pattern disc check valves that have been

designed to be sandwiched between flanges for use with pumps and general cycling applications. They are suitable for use on a wide

range of fluids for applications in process lines, hot water systems, steam and condensate systems etc. The centrally guided design

ensures improved life span of the unit plus more reliability when compared to traditional disc check valves. These disc check valves

will ensure correct flow of condensate and other suitable fluids whilst also preventing reverse flow - maintaining production and profit

at all times.

Standards: Designed in accordance with BS EN 14341:2006. This product fully complies with the requirements of the European

Pressure Equipment Directive 97 / 23 / EC and carries the

mark when so required.

Shut-off: Shut-off conforms to EN 12266-1:2003 Rate F.

Certification: This product is available with certification to EN 10204 3.1. Note: All certification/inspection requirements must be

stated at the time of order placement.

DCV10

DCV10

and

DCV10C

DN25 - DN100

DN125 - DN250

Sizes and pipe connections

Sizes: DN25, DN40, DN50, DN80, DN100, DN125, DN150, DN200 and DN250

The PN rated design fits between the

following flanges:

DN25 - DN100

EN 1092 PN25, PN16, PN40, JIS / KS 10K and JIS / KS 20K

DN125 - DN250

EN 1092 PN25, PN16, PN40 and JIS / KS 20K

The ASME Class 300 design fits between the following flanges: ASME B 16.5 Class 150 and Class 300.

Face-to-face dimensions are in accordance with EN 558 Series 49 for the DN125 - DN200 size range and EN 558 Series 52 for the DN250.

Page 1 of 6

7.6.16
