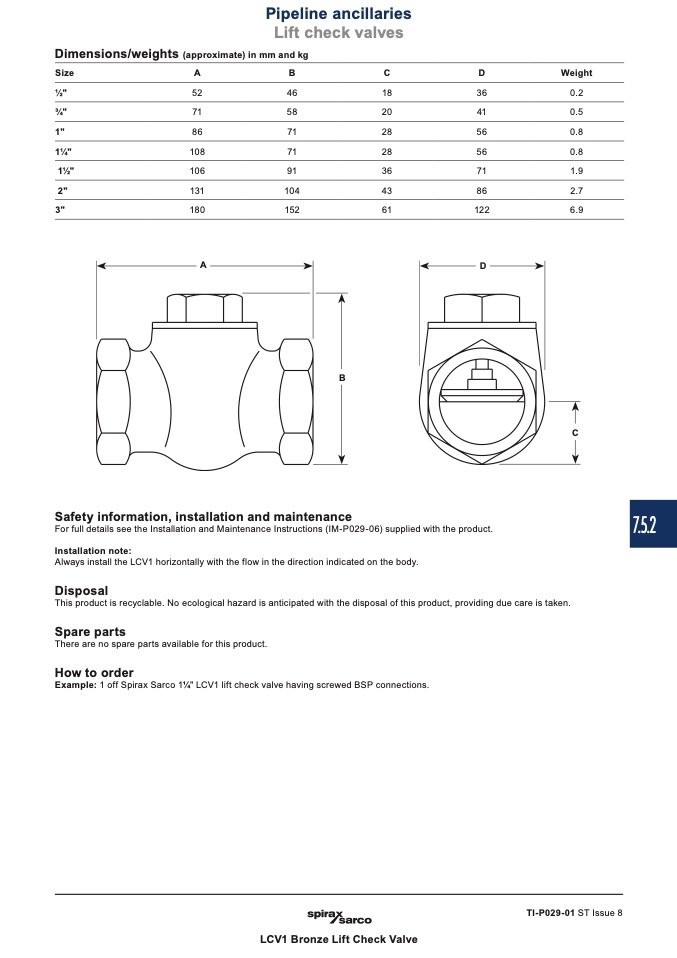

Pipeline ancillaries

Lift check valves

Dimensions/weights (approximate) in mm and kg

Size

A

B

C

D

Weight

1⁄2"

52

46

3⁄4"

71

58

1"

86

71

11⁄4"

108

71

11⁄2"

106

91

2"

131

104

3"

180

152

18

36

0.2

20

41

0.5

28

56

0.8

28

56

0.8

36

71

1.9

43

86

2.7

61

122

6.9

A

D

B

Safety information, installation and maintenance

For full details see the Installation and Maintenance Instructions (IM-P029-06) supplied with the product.

Installation note:

Always install the LCV1 horizontally with the flow in the direction indicated on the body.

Disposal

C

This product is recyclable. No ecological hazard is anticipated with the disposal of this product, providing due care is taken.

Spare parts

There are no spare parts available for this product.

How to order

Example: 1 off Spirax Sarco 11⁄4" LCV1 lift check valve having screwed BSP connections.

TI-P029-01 ST Issue 8

LCV1 Bronze Lift Check Valve

7.5.2
