Dimensions (approximate) in mm

LSB31, LSB32, LSB33 and LSB34

LSB71, LSB72, LSB73 and LSB74

144

Technical data

Protection

Outer cover

Room temperature

Connection socket

Position indicator

Mounting kit

Switch sensor

Case

LSB3_

LSB7_

Standard

IP67

Explosion proof Exd IIC T6, IP67

Epoxy - polyester

-20°C to +80°C

8 terminals

0° to 90° dome type

NAMUR, SS1 or SS2 stainless steel

Mechanical 2-SPDT

Cast aluminum

Optional

IP68

IP68

Nylon

-40°C to +100°C

110

142

7.4.170

89

134

172

Pipeline ancillaries

Lift check valves

LSB31, LSB32, LSB33, LSB34,

LSB71, LSB72, LSB73 and LSB74

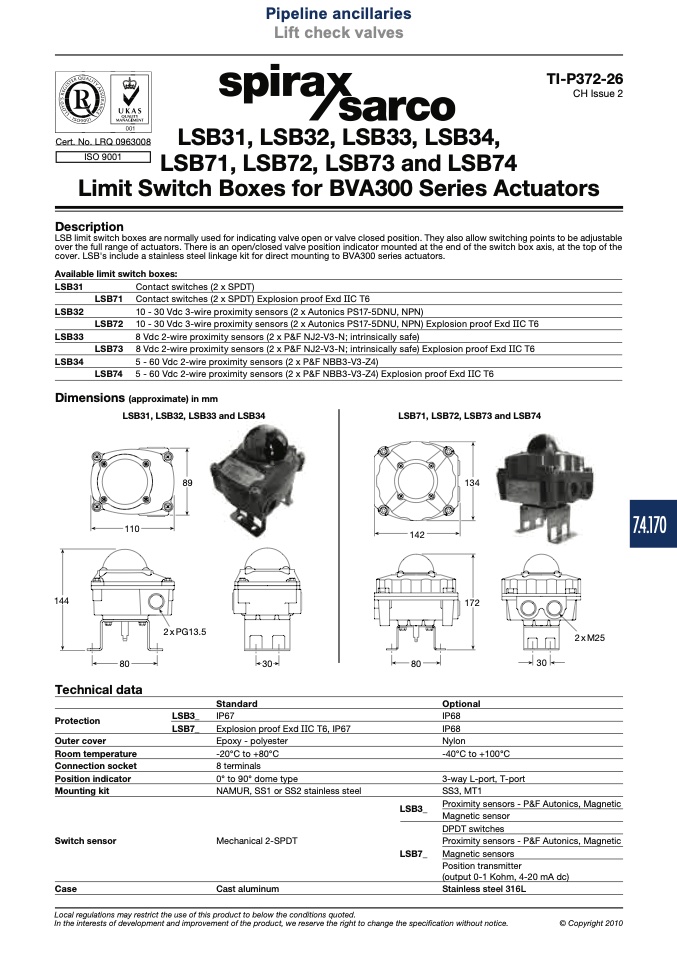

Limit Switch Boxes for BVA300 Series Actuators

Description

LSB limit switch boxes are normally used for indicating valve open or valve closed position. They also allow switching points to be adjustable

over the full range of actuators. There is an open/closed valve position indicator mounted at the end of the switch box axis, at the top of the

cover. LSB's include a stainless steel linkage kit for direct mounting to BVA300 series actuators.

Cert. No. LRQ 0963008

ISO 9001

Available limit switch boxes:

LSB31

LSB71

LSB32

LSB72

LSB33

LSB73

LSB34

LSB74

Contact switches (2 x SPDT)

Contact switches (2 x SPDT) Explosion proof Exd IIC T6

10 - 30 Vdc 3-wire proximity sensors (2 x Autonics PS17-5DNU, NPN)

10 - 30 Vdc 3-wire proximity sensors (2 x Autonics PS17-5DNU, NPN) Explosion proof Exd IIC T6

8 Vdc 2-wire proximity sensors (2 x P&F NJ2-V3-N; intrinsically safe)

8 Vdc 2-wire proximity sensors (2 x P&F NJ2-V3-N; intrinsically safe) Explosion proof Exd IIC T6

5 - 60 Vdc 2-wire proximity sensors (2 x P&F NBB3-V3-Z4)

5 - 60 Vdc 2-wire proximity sensors (2 x P&F NBB3-V3-Z4) Explosion proof Exd IIC T6

2 x PG13.5

80

30

80

30

2xM25

Local regulations may restrict the use of this product to below the conditions quoted.

In the interests of development and improvement of the product, we reserve the right to change the specification without notice.

© Copyright 2010

LSB3_

LSB7_

3-way L-port, T-port

SS3, MT1

Proximity sensors - P&F Autonics, Magnetic

Magnetic sensor

DPDT switches

Proximity sensors - P&F Autonics, Magnetic

Magnetic sensors

Position transmitter

(output 0-1 Kohm, 4-20 mA dc)

Stainless steel 316L

TI-P372-26

CH Issue 2
