Pipeline ancillaries

HVB3aslltvoaplveaslve

Local regulations may restrict the use of this product to below the conditions quoted.

In the interests of development and improvement of the product, we reserve the right to change the specification without notice.

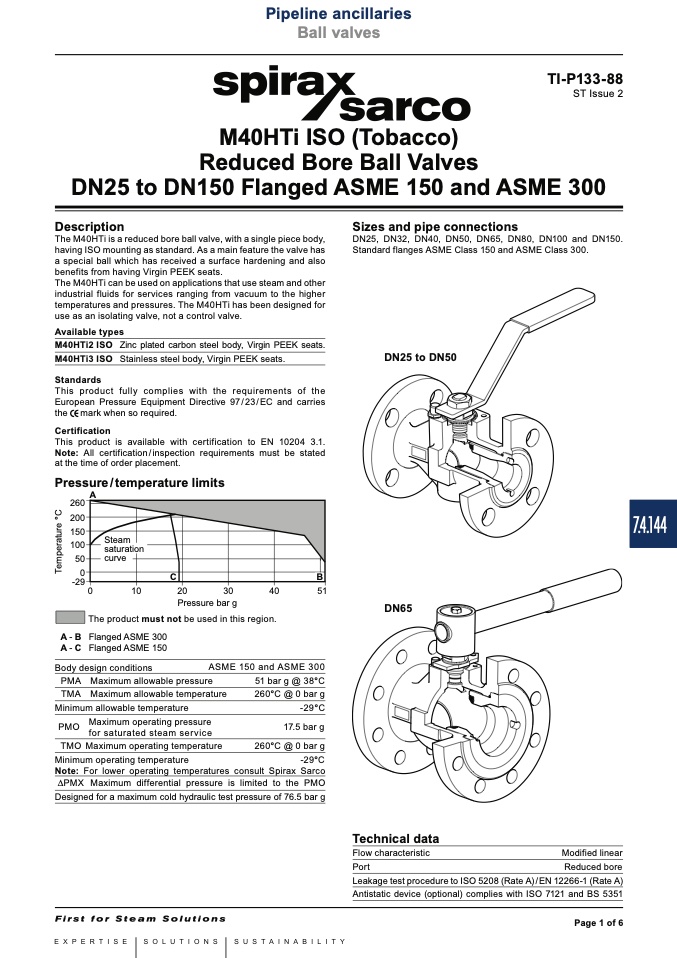

TI-P133-88

ST Issue 2

M40HTi ISO (Tobacco)

Reduced Bore Ball Valves

DN25 to DN150 Flanged ASME 150 and ASME 300

Description

The M40HTi is a reduced bore ball valve, with a single piece body,

having ISO mounting as standard. As a main feature the valve has

a special ball which has received a surface hardening and also

benefits from having Virgin PEEK seats.

The M40HTi can be used on applications that use steam and other

industrial fluids for services ranging from vacuum to the higher

temperatures and pressures. The M40HTi has been designed for

use as an isolating valve, not a control valve.

Available types

M40HTi2 ISO Zinc plated carbon steel body, Virgin PEEK seats.

M40HTi3 ISO Stainless steel body, Virgin PEEK seats.

Standards

This product fully complies with the requirements of the

European Pressure Equipment Directive 97/23/EC and carries

the mark when so required.

Certification

This product is available with certification to EN 10204 3.1.

Note: All certification/inspection requirements must be stated

at the time of order placement.

Pressure/temperature limits

��

The product must not be used in this region.

A - B Flanged ASME 300

A - C Flanged ASME 150

Body design conditions

ASME 150 and ASME 300

Sizes and pipe connections

DN25, DN32, DN40, DN50, DN65, DN80, DN100 and DN150.

Standard flanges ASME Class 150 and ASME Class 300.

DN25 to DN50

Steam

saturation

curve

��

Pressure bar g

DN65

51 bar g @ 38°C

260°C @ 0 bar g

-29°C

17.5 bar g

260°C @ 0 bar g

PMX Maximum differential pressure is limited to the PMO

Designed for a maximum cold hydraulic test pressure of 76.5 bar g

PMA Maximum allowable pressure

TMA Maximum allowable temperature

Minimum allowable temperature

PMO

Maximum operating pressure

for saturated steam service

TMO Maximum operating temperature

Minimum operating temperature

Note: For lower operating temperatures consult Spirax Sarco

-29°C

Technical data

Flow characteristic

Port

Leakage test procedure to ISO 5208 (Rate A) / EN 12266-1 (Rate A)

Antistatic device (optional) complies with ISO 7121 and BS 5351

Modified linear

Reduced bore

Page 1 of 6
