Pipeline ancillaries

Local regulations may restrict the use of this product to below the conditions quoted.

HVB3aslltvoaplveaslve

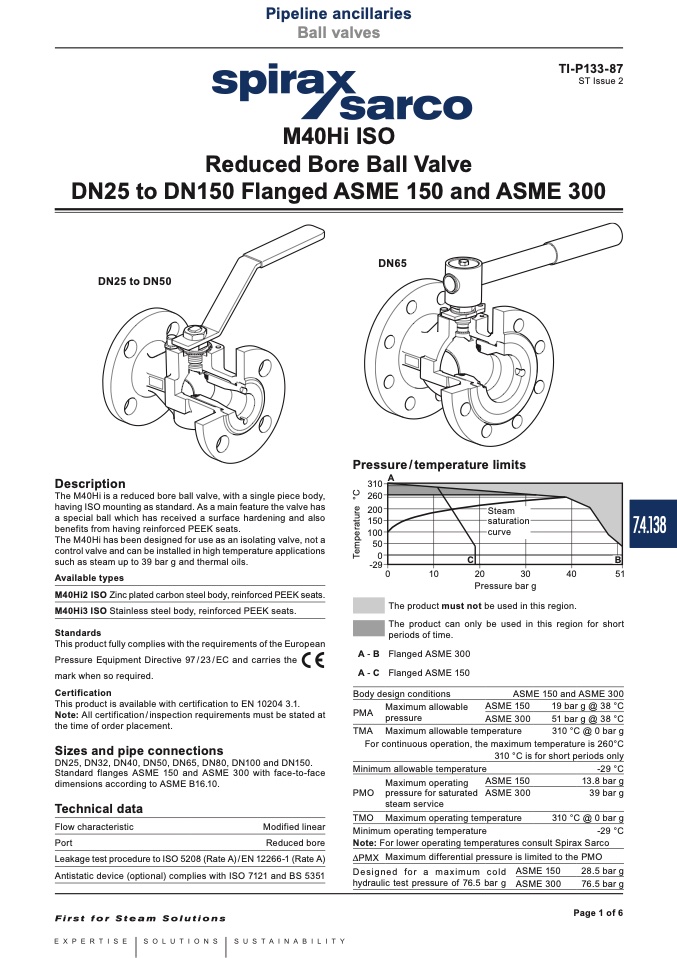

TI-P133-87

ST Issue 2

M40Hi ISO

Reduced Bore Ball Valve

DN25 to DN150 Flanged ASME 150 and ASME 300

DN65

DN25 to DN50

Description

The M40Hi is a reduced bore ball valve, with a single piece body,

having ISO mounting as standard. As a main feature the valve has

a special ball which has received a surface hardening and also

benefits from having reinforced PEEK seats.

The M40Hi has been designed for use as an isolating valve, not a

control valve and can be installed in high temperature applications

such as steam up to 39 bar g and thermal oils.

Available types

M40Hi2 ISO Zinc plated carbon steel body, reinforced PEEK seats.

M40Hi3 ISO Stainless steel body, reinforced PEEK seats.

Standards

This product fully complies with the requirements of the European

Pressure Equipment Directive 97/23/EC and carries the

mark when so required.

Certification

This product is available with certification to EN 10204 3.1.

Note: All certification / inspection requirements must be stated at

the time of order placement.

Sizes and pipe connections

DN25, DN32, DN40, DN50, DN65, DN80, DN100 and DN150.

Standard flanges ASME 150 and ASME 300 with face-to-face

dimensions according to ASME B16.10.

Pressure / temperature limits

��

A -B

A -C

Steam

saturation

curve

��

Pressure bar g

The product must not be used in this region.

The product can only be used in this region for short

periods of time.

Flanged ASME 300

Flanged ASME 150

Body design conditions

PMA

Maximum allowable

ASME 150 and ASME 300

ASME 150

ASME 300

TMA Maximum allowable temperature

19 bar g @ 38 °C

51 bar g @ 38 °C

310 °C @ 0 bar g

pressure

For continuous operation, the maximum temperature is 260°C

310 °C is for short periods only

Technical data

Flow characteristic

Port

TMO Maximum operating temperature

Minimum operating temperature

Note: For lower operating temperatures consult Spirax Sarco

PMX Maximum differential pressure is limited to the PMO

Designed for a maximum cold ASME 150

28.5 bar g

hydraulic test pressure of 76.5 bar g ASME 300

76.5 bar g

Minimum allowable temperature

-29 °C

13.8 bar g

39 bar g

Maximum operating

PMO pressure for saturated

steam service
