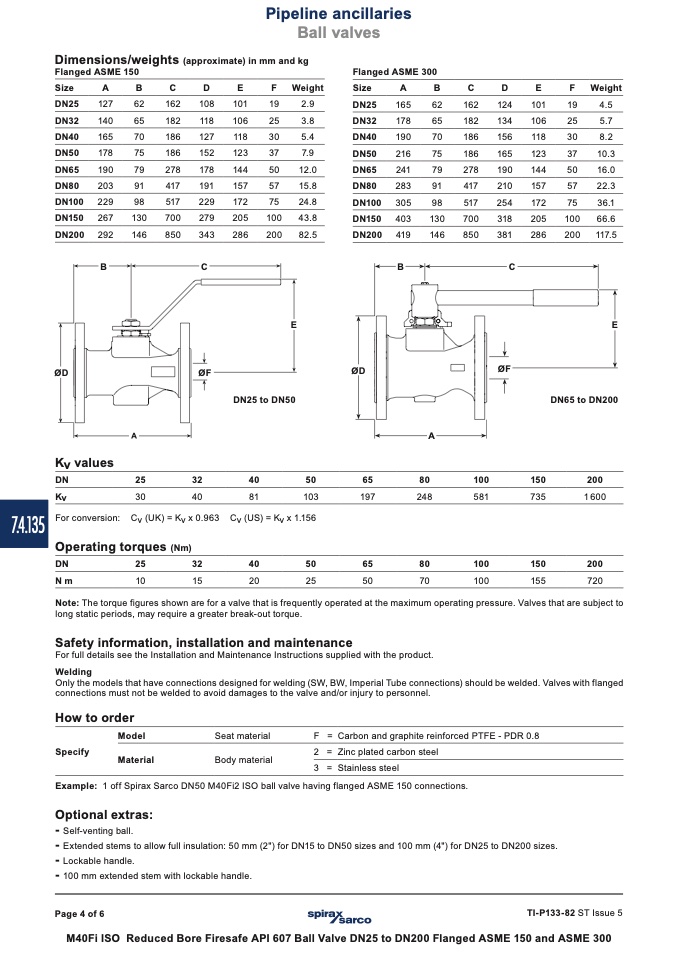

Pipeline ancillaries
HVB3aslltvoaplveaslve
D
7.4.135
Dimensions/weights (approximate) in mm and kg
Flanged ASME 150
Size
A
B
C
D
E
F Weight
DN25
127
62
162
108
101
19
2.9
DN32
140
65
182
118
106
25
3.8
DN40
165
70
186
127
118
30
5.4
DN50
178
75
186
152
123
37
7.9
DN65
190
79
278
178
144
50
12.0
DN80
203
91
417
191
157
57
15.8
DN100 229
98
517
229
172
75
24.8
DN150 267
130
700
279
205
100
43.8
DN200 292
146
850
343
286
200
82.5
Flanged ASME 300
Size
A
B
C
D
E
F Weight
DN25
165
62
162
124
101
19
4.5
DN32
178
65
182
134
106
25
5.7
DN40
190
70
186
156
118
30
8.2
DN50
216
75
186
165
123
37
10.3
DN65
241
79
278
190
144
50
16.0
DN80
283
91
417
210
157
57
22.3
DN100 305
98
517
254
172
75
36.1
DN150 403
130
700
318
205
100
66.6
DN200 419
146
850
381
286
200 117.5
B
C
B
C
E
E
ØD
Kv values
DN
ØF
Ø
ØF
DN25 to DN50
DN65 to DN200
A
A
25
32
40
50
65
80
100
150
200
Kv
30
40
81
103
197
248
581
735
1600
For conversion: Cv (UK) = Kv x 0.963 Cv (US) = Kv x 1.156
Operating torques (Nm)
DN
25
32
40
50
65
80
100
150
200
Nm
10
15
20
25
50
70
100
155
720
Note: The torque figures shown are for a valve that is frequently operated at the maximum operating pressure. Valves that are subject to
long static periods, may require a greater break-out torque.
Safety information, installation and maintenance
For full details see the Installation and Maintenance Instructions supplied with the product.
Welding
Only the models that have connections designed for welding (SW, BW, Imperial Tube connections) should be welded. Valves with flanged
connections must not be welded to avoid damages to the valve and/or injury to personnel.
How to order
Model
Seat material
F = Carbon and graphite reinforced PTFE - PDR 0.8
Specify
Material
Body material
2 = Zinc plated carbon steel
3 = Stainless steel
Example: 1 off Spirax Sarco DN50 M40Fi2 ISO ball valve having flanged ASME 150 connections.
Optional extras:
-
Self-venting ball.
-
Extended stems to allow full insulation: 50 mm (2") for DN15 to DN50 sizes and 100 mm (4") for DN25 to DN200 sizes.
-
Lockable handle.
-
100 mm extended stem with lockable handle.
Page 4 of 6
TI-P133-82 ST Issue 5
M40Fi ISO Reduced Bore Firesafe API 607 Ball Valve DN25 to DN200 Flanged ASME 150 and ASME 300
