DN65 to DN200 - Spare parts (see page 6 for sizes DN25 - DN50)

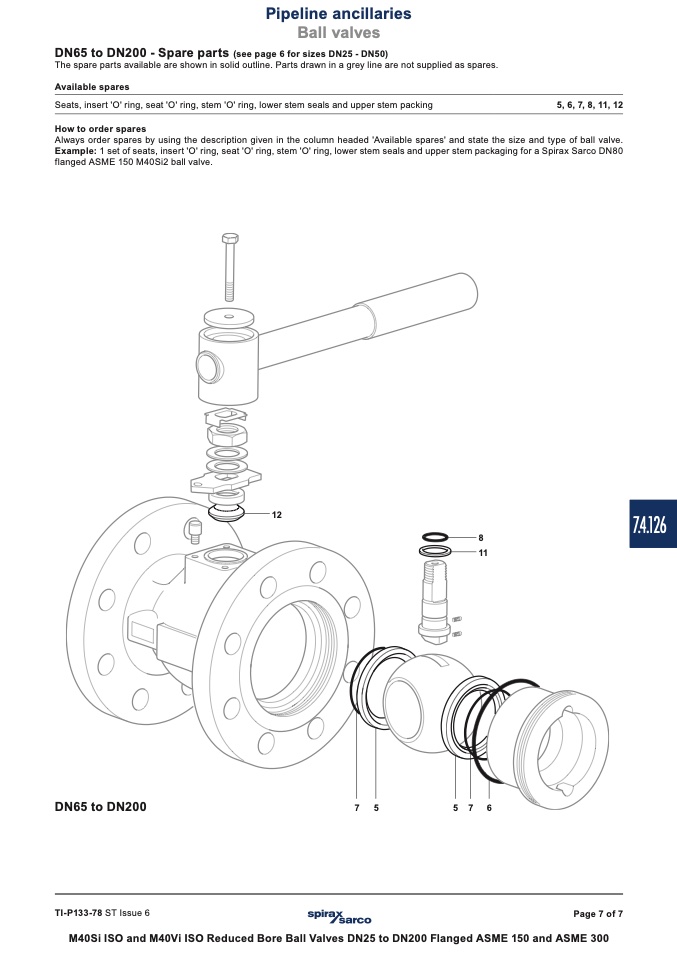

The spare parts available are shown in solid outline. Parts drawn in a grey line are not supplied as spares.

Available spares

Seats, insert 'O' ring, seat 'O' ring, stem 'O' ring, lower stem seals and upper stem packing

5, 6, 7, 8, 11, 12

How to order spares

Always order spares by using the description given in the column headed 'Available spares' and state the size and type of ball valve.

Example: 1 set of seats, insert 'O' ring, seat 'O' ring, stem 'O' ring, lower stem seals and upper stem packaging for a Spirax Sarco DN80

flanged ASME 150 M40Si2 ball valve.

12

8

11

DN65toDN200

7 5

5 7 6

TI-P133-78 ST Issue 6
