Boiler house
TDS blowdown controls

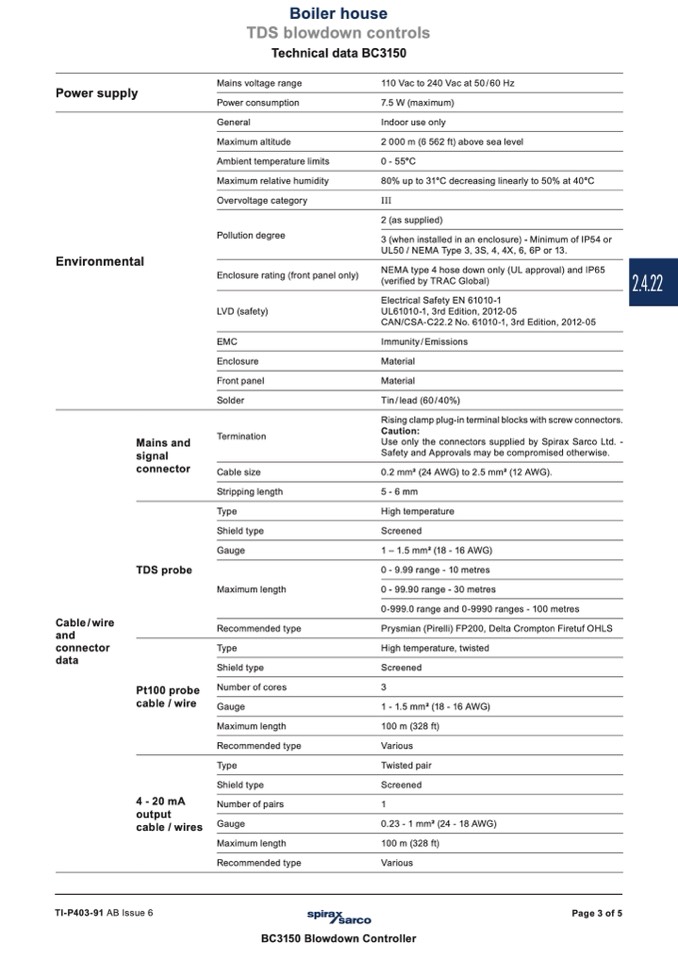

Technical data BC3150
Power supply
Mains voltage range
Power consumption
General
Maximum altitude
Ambient temperature limits
Maximum relative humidity
Overvoltage category
Pollution degree
Enclosure rating (front panel only)
LVD (safety)
EMC
Enclosure
Front panel
Solder
Termination
Cable size
Stripping length
Type
Shield type
Gauge
Maximum length
Recommended type
Type
Shield type
Number of cores
Gauge
Maximum length
Recommended type
Type
Shield type
Number of pairs
Gauge
Maximum length
Recommended type
110 Vac to 240 Vac at 50/60 Hz
7.5 W (maximum)
Indoor use only
2 000 m (6 562 ft) above sea level
0 - 55°C
80% up to 31°C decreasing linearly to 50% at 40°C
III
2 (as supplied)
3 (when installed in an enclosure) - Minimum of IP54 or
UL50 / NEMA Type 3, 3S, 4, 4X, 6, 6P or 13.
NEMA type 4 hose down only (UL approval) and IP65
(verified by TRAC Global)
Electrical Safety EN 61010-1
UL61010-1, 3rd Edition, 2012-05
CAN/CSA-C22.2 No. 61010-1, 3rd Edition, 2012-05
Immunity / Emissions
Material
Material
Tin / lead (60 / 40%)
Rising clamp plug-in terminal blocks with screw connectors.
Caution:
Use only the connectors supplied by Spirax Sarco Ltd. -
Safety and Approvals may be compromised otherwise.
0.2 mm2 (24 AWG) to 2.5 mm2 (12 AWG).
5-6mm
High temperature
Screened
1–1.5mm2(18-16AWG)
0 - 9.99 range - 10 metres
0 - 99.90 range - 30 metres
0-999.0 range and 0-9990 ranges - 100 metres
Prysmian (Pirelli) FP200, Delta Crompton Firetuf OHLS
High temperature, twisted
Screened
3
1-1.5mm2(18-16AWG)
100 m (328 ft)
Various
Twisted pair
Screened
1
0.23-1mm2(24-18AWG)
100 m (328 ft)
Various
Environmental
Cable / wire
and
connector
data
Mains and
signal
connector
TDS probe
Pt100 probe
cable / wire
4 - 20 mA
output
cable / wires
TI-P403-91 AB Issue 6
Page 3 of 5
BC3150 Blowdown Controller
2.4.22
