Pipeline ancillaries

HVB3aslltvoaplveaslve

Page 4 of 4

7.4.83

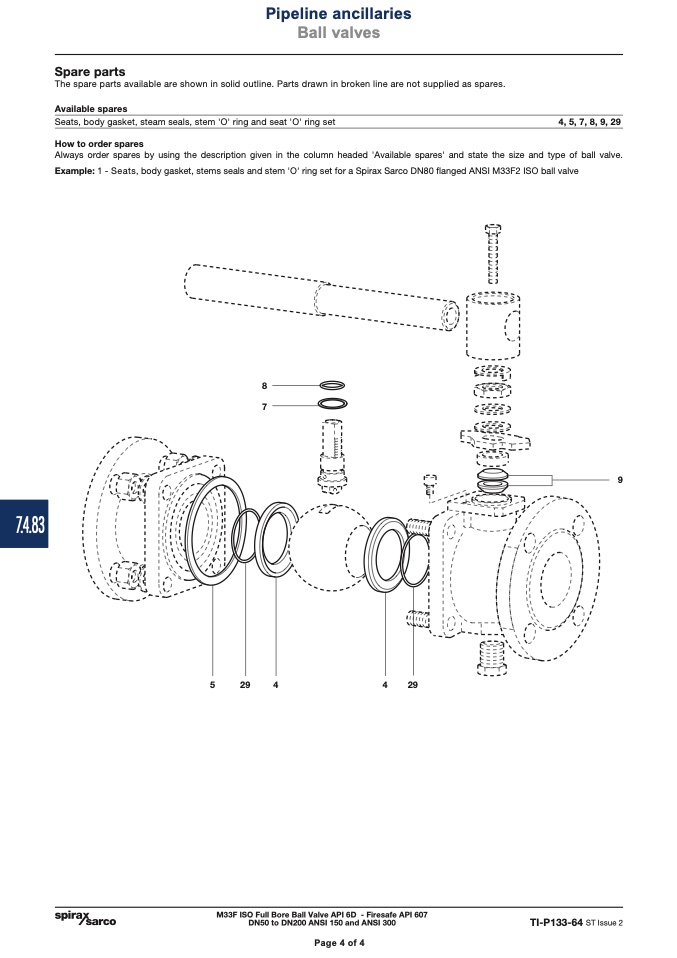

Spare parts

The spare parts available are shown in solid outline. Parts drawn in broken line are not supplied as spares.

Available spares

Seats, body gasket, steam seals, stem 'O' ring and seat 'O' ring set

4, 5, 7, 8, 9, 29

How to order spares

Always order spares by using the description given in the column headed 'Available spares' and state the size and type of ball valve.

Example: 1 - Seats, body gasket, stems seals and stem 'O' ring set for a Spirax Sarco DN80 flanged ANSI M33F2 ISO ball valve

8

7

9

5

29

4

4

29

M33F ISO Full Bore Ball Valve API 6D - Firesafe API 607

DN50 to DN200 ANSI 150 and ANSI 300

TI-P133-64 ST Issue 2

Page 4 of 4
