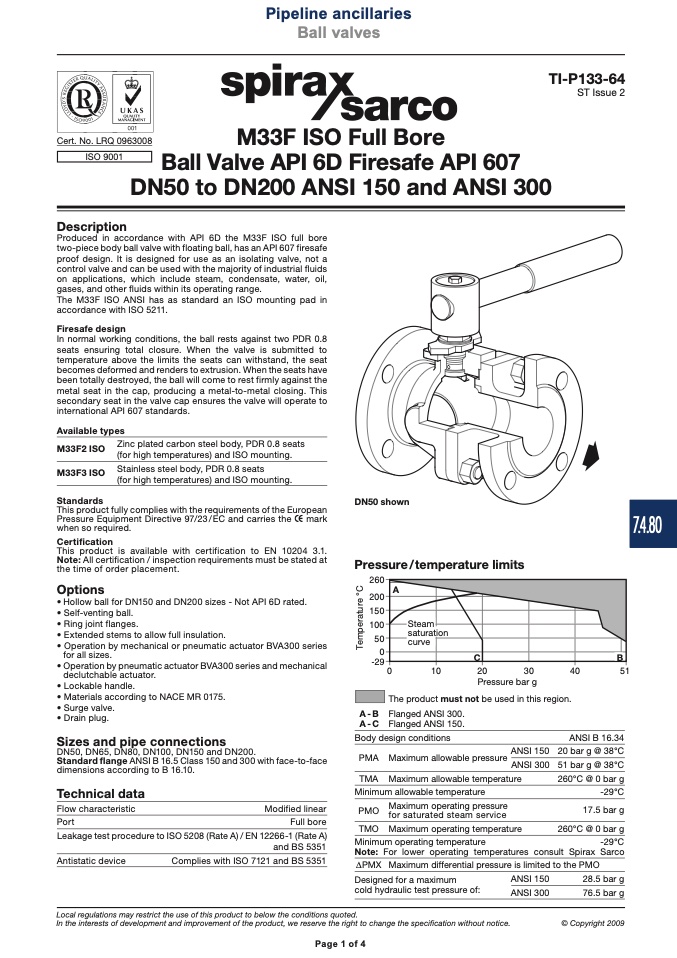

M33F ISO Full Bore

Ball Valve API 6D Firesafe API 607

DN50 to DN200 ANSI 150 and ANSI 300

Description

Produced in accordance with API 6D the M33F ISO full bore

two-piece body ball valve with floating ball, has an API 607 firesafe

proof design. It is designed for use as an isolating valve, not a

control valve and can be used with the majority of industrial fluids

on applications, which include steam, condensate, water, oil,

gases, and other fluids within its operating range.

The M33F ISO ANSI has as standard an ISO mounting pad in

accordance with ISO 5211.

Firesafe design

In normal working conditions, the ball rests against two PDR 0.8

seats ensuring total closure. When the valve is submitted to

temperature above the limits the seats can withstand, the seat

becomes deformed and renders to extrusion. When the seats have

been totally destroyed, the ball will come to rest firmly against the

metal seat in the cap, producing a metal-to-metal closing. This

secondary seat in the valve cap ensures the valve will operate to

international API 607 standards.

Available types

M33F2 ISO

M33F3 ISO

Standards

Zinc plated carbon steel body, PDR 0.8 seats

(for high temperatures) and ISO mounting.

Stainless steel body, PDR 0.8 seats

(for high temperatures) and ISO mounting.

This product fully complies with the requirements of the European

Pressure Equipment Directive 97/23/EC and carries the

mark

when so required.

Certification

This product is available with certification to EN 10204 3.1.

Note: All certification / inspection requirements must be stated at

the time of order placement.

Options

• Hollow ball for DN150 and DN200 sizes - Not API 6D rated.

• Self-venting ball.

• Ring joint flanges.

• Extended stems to allow full insulation.

• Operation by mechanical or pneumatic actuator BVA300 series

for all sizes.

• Operation by pneumatic actuator BVA300 series and mechanical

declutchable actuator.

• Lockable handle.

• Materials according to NACE MR 0175.

• Surge valve.

• Drain plug.

Sizes and pipe connections

DN50, DN65, DN80, DN100, DN150 and DN200.

Standard flange ANSI B 16.5 Class 150 and 300 with face-to-face

dimensions according to B 16.10.

Technical data

Flow characteristic

Port

Leakage test procedure to ISO 5208 (Rate A) / EN 12266-1 (Rate A)

DN50 shown

Pressure/temperature limits

��

�

��

A - B

A - C

�

��

Pressure bar g

The product must not be used in this region.

Flanged ANSI 300.

Flanged ANSI 150.

Body design conditions

ANSI B 16.34

20 bar g @ 38°C

51 bar g @ 38°C

260°C @ 0 bar g

-29°C

17.5 bar g

260°C @ 0 bar g

-29°C

PMA

Maximum allowable pressure

ANSI 150

ANSI 300

Maximum allowable temperature

TMA

Minimum allowable temperature

Modified linear

Full bore

PMO

Maximum operating pressure

for saturated steam service

TMO Maximum operating temperature

Minimum operating temperature

Antistatic device

and BS 5351

Complies with ISO 7121 and BS 5351

Note: For lower operating temperatures consult Spirax Sarco

PMX Maximum differential pressure is limited to the PMO

Designed for a maximum

cold hydraulic test pressure of:

ANSI 150

ANSI 300

28.5 bar g

76.5 bar g

Local regulations may restrict the use of this product to below the conditions quoted.

In the interests of development and improvement of the product, we reserve the right to change the specification without notice.
