Pipeline ancillaries

HVB3aslltvoaplveaslve

Page 2 of 4

DN65 to DN200

12

11

18

19

20

17

16

9

7.4.69

9

8

1

3

6

2

14

13

12

11

10

7

21

5

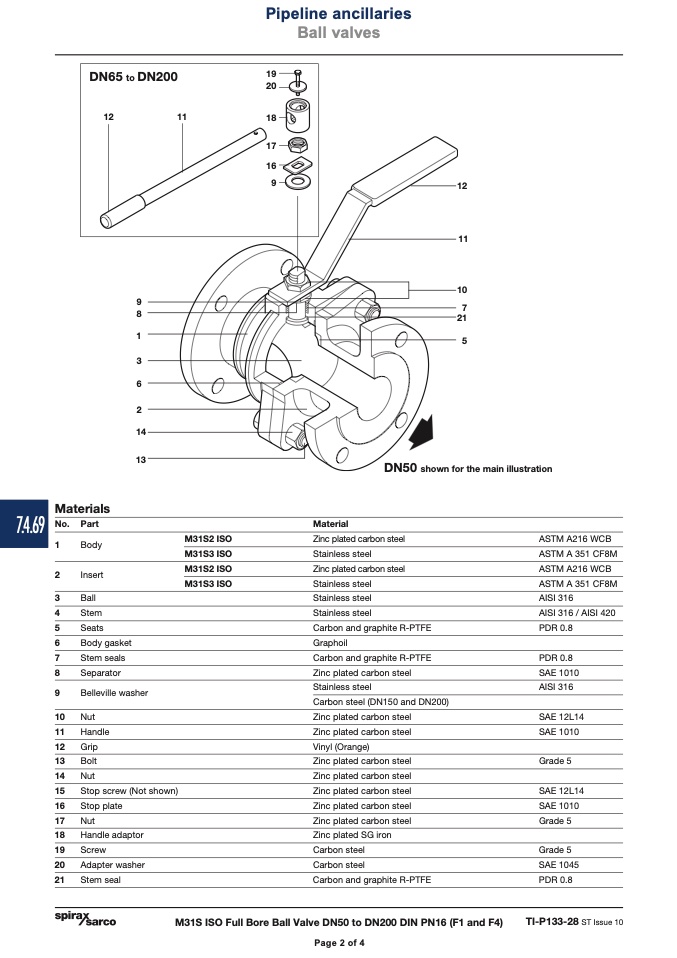

DN50 shown for the main illustration

Materials

No. Part

1

Body

2

Insert

3

Ball

4

Stem

5

Seats

6

Body gasket

7

Stem seals

8

Separator

M31S2 ISO

M31S3 ISO

M31S2 ISO

M31S3 ISO

Material

Zinc plated carbon steel

Stainless steel

Zinc plated carbon steel

Stainless steel

Stainless steel

Stainless steel

Carbon and graphite R-PTFE

Graphoil

Carbon and graphite R-PTFE

Zinc plated carbon steel

Stainless steel

Carbon steel (DN150 and DN200)

Zinc plated carbon steel

Zinc plated carbon steel

Vinyl (Orange)

Zinc plated carbon steel

Zinc plated carbon steel

Zinc plated carbon steel

Zinc plated carbon steel

Zinc plated carbon steel

Zinc plated SG iron

Carbon steel

Carbon steel

Carbon and graphite R-PTFE

ASTM A216 WCB

ASTM A 351 CF8M

ASTM A216 WCB

ASTM A 351 CF8M

AISI 316

AISI 316 / AISI 420

PDR 0.8

PDR 0.8

SAE 1010

AISI 316

SAE 12L14

SAE 1010

Grade 5

SAE 12L14

SAE 1010

Grade 5

Grade 5

SAE 1045

PDR 0.8

9

Belleville washer

10

Nut

11

Handle

12

Grip

13

Bolt

14

Nut

15

Stop screw (Not shown)

16

Stop plate

17

Nut

18

Handle adaptor

19

Screw

20

Adapter washer

21

Stem seal

M31S ISO Full Bore Ball Valve DN50 to DN200 DIN PN16 (F1 and F4)

TI-P133-28 ST Issue 10

Page 2 of 4
