Pipeline ancillaries

HVB3aslltvoaplveaslve

Page 4 of 4

7.4.67

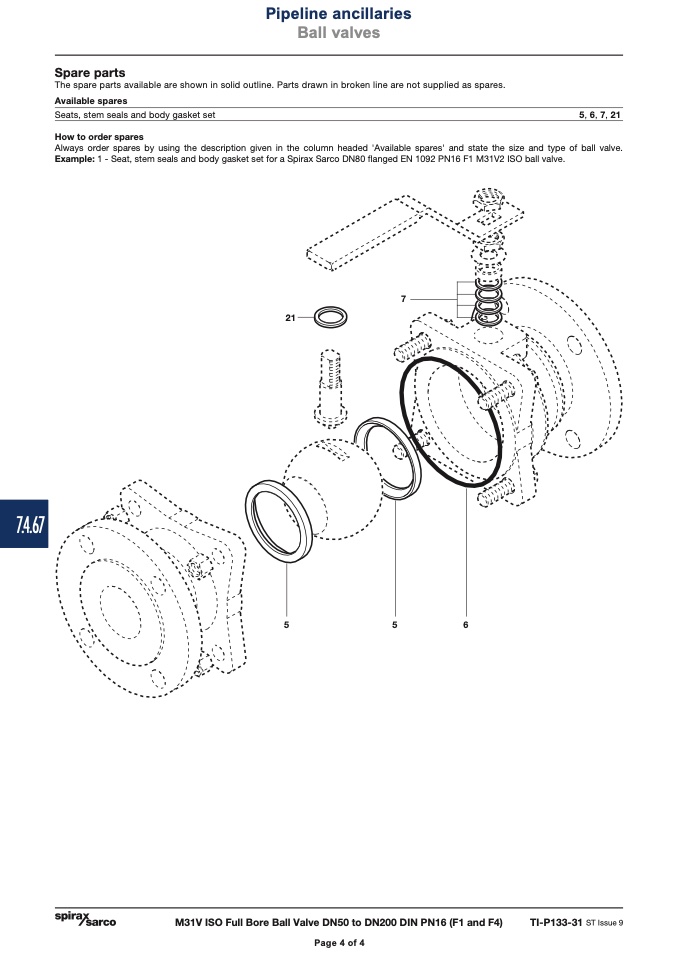

Spare parts

The spare parts available are shown in solid outline. Parts drawn in broken line are not supplied as spares.

Available spares

Seats, stem seals and body gasket set

5, 6, 7, 21

How to order spares

Always order spares by using the description given in the column headed 'Available spares' and state the size and type of ball valve.

Example: 1 - Seat, stem seals and body gasket set for a Spirax Sarco DN80 flanged EN 1092 PN16 F1 M31V2 ISO ball valve.

7

21

5

5

6

M31V ISO Full Bore Ball Valve DN50 to DN200 DIN PN16 (F1 and F4)

TI-P133-31 ST Issue 9

Page 4 of 4
