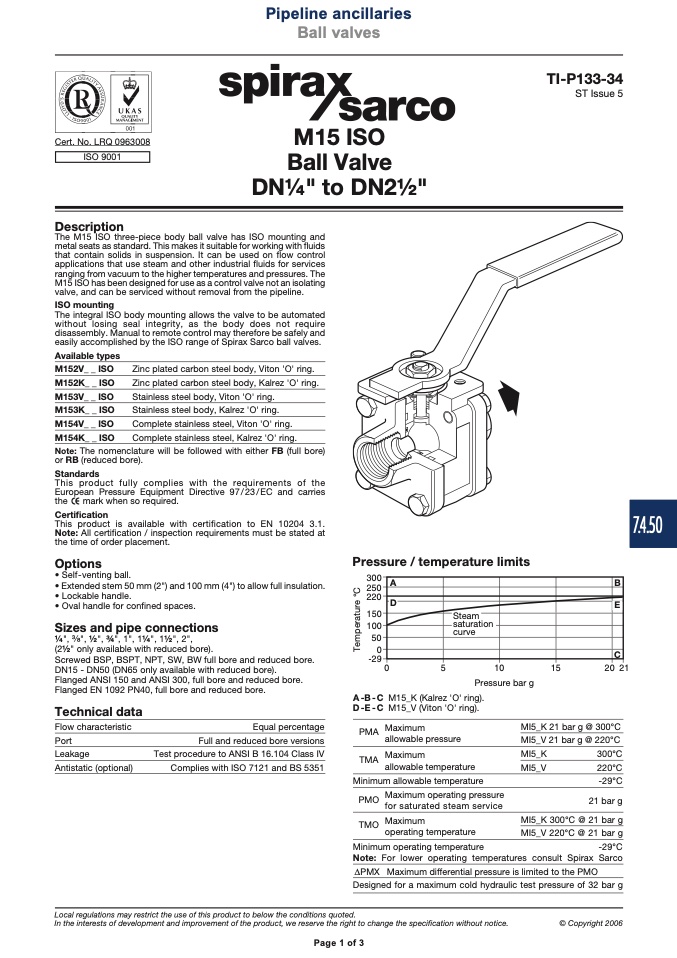

Pipeline ancillaries

HVB3aslltvoaplveaslve

Page 1 of 3

ISO 9001

TI-P133-34

ST Issue 5

Cert. No. LRQ 0963008

Description

The M15 ISO three-piece body ball valve has ISO mounting and

metal seats as standard. This makes it suitable for working with fluids

that contain solids in suspension. It can be used on flow control

applications that use steam and other industrial fluids for services

ranging from vacuum to the higher temperatures and pressures. The

M15 ISO has been designed for use as a control valve not an isolating

valve, and can be serviced without removal from the pipeline.

ISO mounting

The integral ISO body mounting allows the valve to be automated

without losing seal integrity, as the body does not require

disassembly. Manual to remote control may therefore be safely and

easily accomplished by the ISO range of Spirax Sarco ball valves.

M15 ISO

Ball Valve

DN1⁄4" to DN21⁄2"

Available types

M152V_ _ ISO

M152K_ _ ISO

M153V_ _ ISO

M153K_ _ ISO

M154V_ _ ISO

M154K_ _ ISO

Zinc plated carbon steel body, Viton 'O' ring.

Zinc plated carbon steel body, Kalrez 'O' ring.

Stainless steel body, Viton 'O' ring.

Stainless steel body, Kalrez 'O' ring.

Complete stainless steel, Viton 'O' ring.

Complete stainless steel, Kalrez 'O' ring.

Note: The nomenclature will be followed with either FB (full bore)

or RB (reduced bore).

Standards

This product fully complies with the requirements of the

European Pressure Equipment Directive 97/23/EC and carries

the

mark when so required.

Certification

This product is available with certification to EN 10204 3.1.

Note: All certification / inspection requirements must be stated at

the time of order placement.

Options

• Self-venting ball.

• Extended stem 50 mm (2") and 100 mm (4") to allow full insulation.

• Lockable handle.

• Oval handle for confined spaces.

Sizes and pipe connections

1⁄4", ", 1⁄2", 3⁄4", 1", 11⁄4", 11⁄2", 2",

(21⁄2" only available with reduced bore).

Screwed BSP, BSPT, NPT, SW, BW full bore and reduced bore.

DN15 - DN50 (DN65 only available with reduced bore).

Flanged ANSI 150 and ANSI 300, full bore and reduced bore.

Flanged EN 1092 PN40, full bore and reduced bore.

Pressure / temperature limits

���

���

���

���

���

��

�

A

B

D

Steam

saturation

curve

E

C

Technical data

Flow characteristic

Port

Leakage

Antistatic (optional)

Equal percentage

Full and reduced bore versions

Test procedure to ANSI B 16.104 Class IV

Complies with ISO 7121 and BS 5351

D -E - C M15_V (Viton 'O' ring).

PMA

Maximum

allowable pressure

TMA

Maximum

allowable temperature

Minimum allowable temperature

PMO

Maximum operating pressure

for saturated steam service

TMO

Maximum

operating temperature

MI5_K

MI5_V

MI5_K

MI5_V

MI5_K

MI5_V

21 bar g @ 300°C

21 bar g @ 220°C

300°C

220°C

-29°C

21 bar g

300°C @ 21 bar g

220°C @ 21 bar g

-29°C

���

�

�

�

�

�

�

����

Pressure bar g

A -B - C M15_K (Kalrez 'O' ring).

Local regulations may restrict the use of this product to below the conditions quoted.

In the interests of development and improvement of the product, we reserve the right to change the specification without notice.

© Copyright 2006

Page 1 of 3

Minimum operating temperature

Note: For lower operating temperatures consult Spirax Sarco

PMX Maximum differential pressure is limited to the PMO

Designed for a maximum cold hydraulic test pressure of 32 bar g

7.4.50

T

e

m

p

e

r

a

t

u

r

e

°

C
