Pipeline ancillaries

HVB3aslltvoaplveaslve

Page 1 of 3

ISO 9001

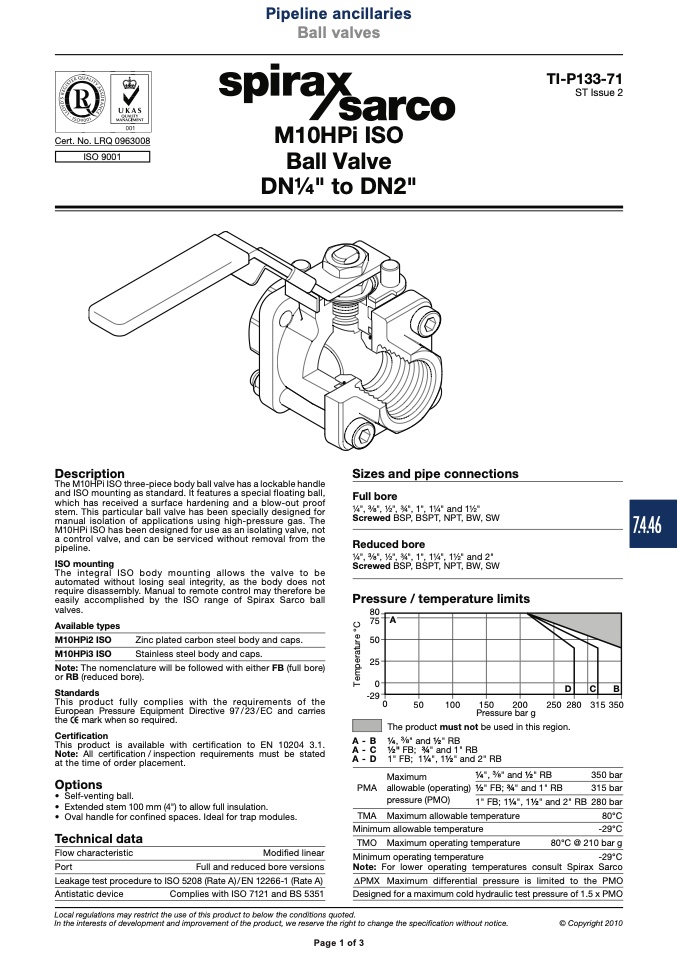

TI-P133-71

ST Issue 2

Cert. No. LRQ 0963008

M10HPi ISO

Ball Valve

DN1⁄4" to DN2"

Description

The M10HPi ISO three-piece body ball valve has a lockable handle

and ISO mounting as standard. It features a special floating ball,

which has received a surface hardening and a blow-out proof

stem. This particular ball valve has been specially designed for

manual isolation of applications using high-pressure gas. The

M10HPi ISO has been designed for use as an isolating valve, not

a control valve, and can be serviced without removal from the

pipeline.

ISO mounting

The integral ISO body mounting allows the valve to be

automated without losing seal integrity, as the body does not

require disassembly. Manual to remote control may therefore be

easily accomplished by the ISO range of Spirax Sarco ball

valves.

Sizes and pipe connections

Full bore

1⁄4", ", 1⁄2", 3⁄4", 1", 11⁄4" and 11⁄2"

Screwed BSP, BSPT, NPT, BW, SW

Reduced bore

1⁄4", ", 1⁄2", 3⁄4", 1", 11⁄4", 11⁄2" and 2"

Screwed BSP, BSPT, NPT, BW, SW

Pressure / temperature limits

Available types

M10HPi2 ISO

M10HPi3 ISO

Zinc plated carbon steel body and caps.

Stainless steel body and caps.

��

A-B

A-C

A-D

PMA

Note: The nomenclature will be followed with either FB (full bore)

or RB (reduced bore).

Standards

This product fully complies with the requirements of the

European Pressure Equipment Directive 97/23/EC and carries

the

mark when so required.

Certification

This product is available with certification to EN 10204 3.1.

Note: All certification / inspection requirements must be stated

at the time of order placement.

Options

• Self-venting ball.

• Extended stem 100 mm (4") to allow full insulation.

• Oval handle for confined spaces. Ideal for trap modules.

Technical data

Flow characteristic

Port

Leakage test procedure to ISO 5208 (Rate A)/EN 12266-1 (Rate A)

Antistatic device

Complies with ISO 7121 and BS 5351

��

Pressure bar g

The product must not be used in this region.

1⁄4, "and1⁄2"RB

1⁄2"FB;3⁄4"and1"RB

1" FB; 11⁄4", 11⁄2" and 2" RB

Maximum

1⁄4", " and 1⁄2" RB

allowable (operating) 1⁄2" FB; 3⁄4" and 1" RB

pressure (PMO)

1" FB; 11⁄4", 11⁄2" and 2" RB 280 bar

80°C

-29°C

80°C @ 210 bar g

350 bar

315 bar

Maximum allowable temperature

TMA

Minimum allowable temperature

Modified linear

Full and reduced bore versions

TMO Maximum operating temperature

Minimum operating temperature

-29°C

Note: For lower operating temperatures consult Spirax Sarco

PMX Maximum differential pressure is limited to the PMO

Designed for a maximum cold hydraulic test pressure of 1.5 x PMO

Local regulations may restrict the use of this product to below the conditions quoted.

In the interests of development and improvement of the product, we reserve the right to change the specification without notice.
