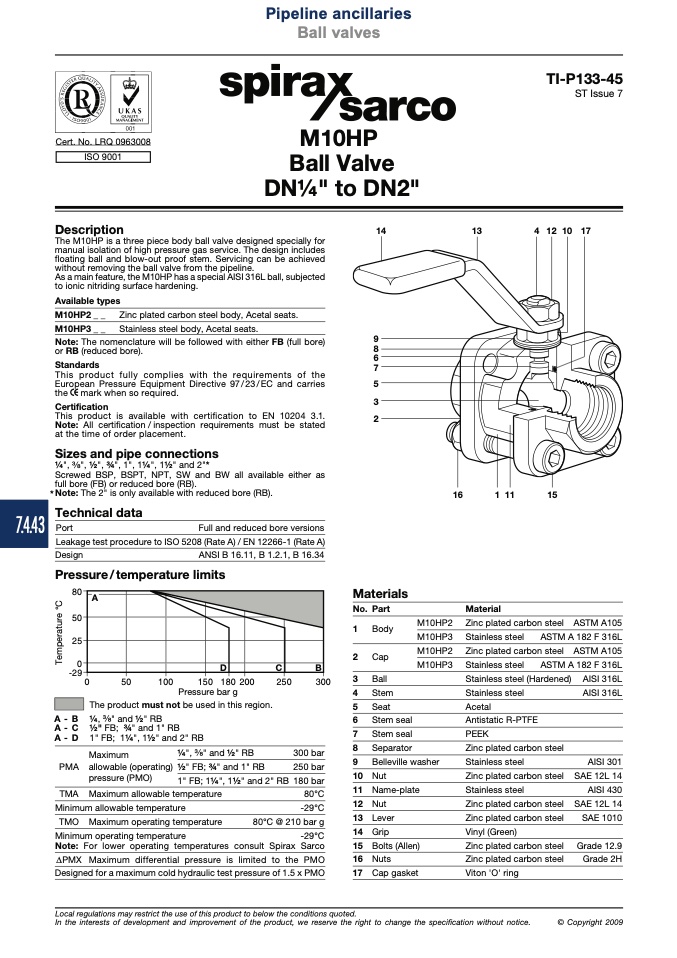

Spirax Sarco - Catalogo Agosto 2017

Pipeline ancillaries

HVB3aslltvoaplveaslve

7.4.43

ISO 9001

Cert. No. LRQ 0963008

Description

The M10HP is a three piece body ball valve designed specially for

manual isolation of high pressure gas service. The design includes

floating ball and blow-out proof stem. Servicing can be achieved

without removing the ball valve from the pipeline.

As a main feature, the M10HP has a special AISI 316L ball, subjected

to ionic nitriding surface hardening.

Available types

M10HP2 _ _ Zinc plated carbon steel body, Acetal seats.

M10HP3 _ _ Stainless steel body, Acetal seats.

Note: The nomenclature will be followed with either FB (full bore)

or RB (reduced bore).

Standards

This product fully complies with the requirements of the

European Pressure Equipment Directive 97 / 23 / EC and carries

the mark when so required.

Certification

This product is available with certification to EN 10204 3.1.

Note: All certification/inspection requirements must be stated

at the time of order placement.

Sizes and pipe connections

1⁄4", ", 1⁄2", 3⁄4", 1", 11⁄4", 11⁄2" and 2"*

Screwed BSP, BSPT, NPT, SW and BW all available either as

full bore (FB) or reduced bore (RB).

* Note: The 2" is only available with reduced bore (RB).

Technical data

Port

Full and reduced bore versions

Leakage test procedure to ISO 5208 (Rate A) / EN 12266-1 (Rate A)

Design

ANSI B 16.11, B 1.2.1, B 16.34

M10HP

Ball Valve

DN1⁄4" to DN2"

TI-P133-45

ST Issue 7

4 12 10 17

1 11

Pressure/temperature limits

��

�

A-B

A-C

A-D

PMA

Materials

No. Part

Body

M10HP2

M10HP3

Cap

M10HP2

M10HP3

Ball

Stem

Seat

Stem seal

Separator

Belleville washer

10 Nut

11 Name-plate

12 Nut

13 Lever

14 Grip

15 Bolts (Allen)

16 Nuts

17 Cap gasket

Material

Zinc plated carbon steel

Stainless steel

ASTM A 182 F 316L

Zinc plated carbon steel ASTM A105

Stainless steel

ASTM A 182 F 316L

ASTM A105

�

��

300 bar

Stainless steel (Hardened)

Stainless steel

Acetal

Antistatic R-PTFE

PEEK

Zinc plated carbon steel

Stainless steel

Zinc plated carbon steel

Stainless steel

Zinc plated carbon steel

Vinyl (Green)

Zinc plated carbon steel

Viton 'O' ring

AISI 316L

AISI 301

SAE 12L 14

AISI 430

SAE 12L 14

SAE 1010

Grade 12.9

Grade 2H

Pressure bar g

The product must not be used in this region.

1⁄4, " and 1⁄2" RB

1⁄2" FB; 3⁄4" and 1" RB

1" FB; 11⁄4", 11⁄2" and 2" RB

Maximum

1⁄4", " and 1⁄2" RB

allowable (operating) 1⁄2" FB; 3⁄4" and 1" RB

pressure (PMO)

250 bar

1" FB; 11⁄4", 11⁄2" and 2" RB 180 bar

TMA

Minimum allowable temperature

TMO Maximum operating temperature

Minimum operating temperature

80°C

-29°C

80°C @ 210 bar g

Maximum allowable temperature

-29°C

Note: For lower operating temperatures consult Spirax Sarco

PMX Maximum differential pressure is limited to the PMO

Designed for a maximum cold hydraulic test pressure of 1.5 x PMO

Local regulations may restrict the use of this product to below the conditions quoted.

In the interests of development and improvement of the product, we reserve the right to change the specification without notice.
