Pipeline ancillaries

HVB3aslltvoaplveaslve

Local regulations may restrict the use of this product to below the conditions quoted.

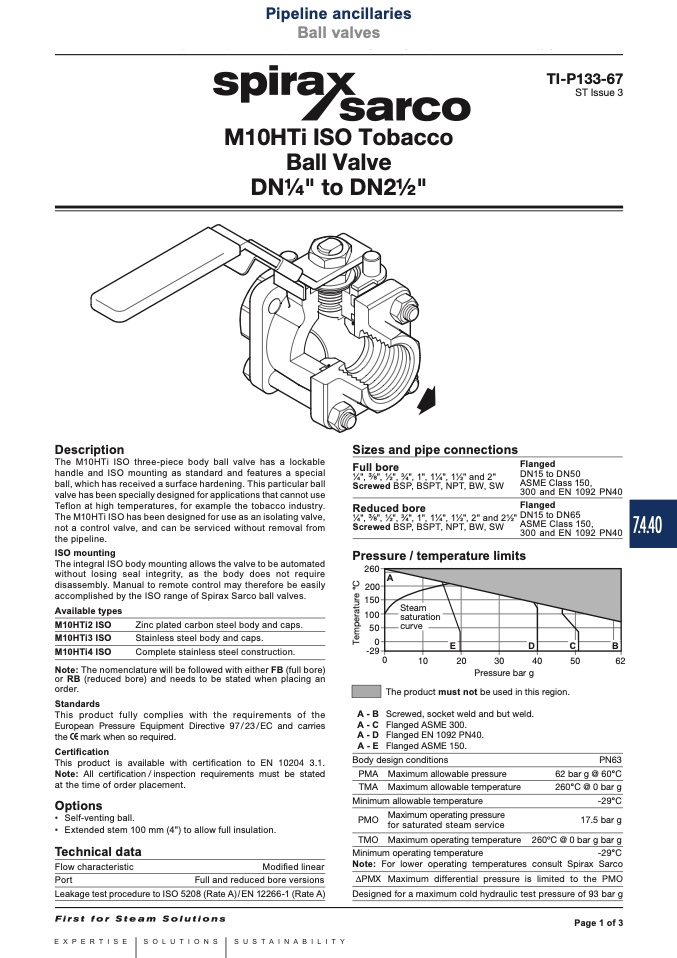

TI-P133-67

ST Issue 3

M10HTi ISO Tobacco

Ball Valve

DN1⁄4" to DN21⁄2"

Description

The M10HTi ISO three-piece body ball valve has a lockable

handle and ISO mounting as standard and features a special

ball, which has received a surface hardening. This particular ball

valve has been specially designed for applications that cannot use

Teflon at high temperatures, for example the tobacco industry.

The M10HTi ISO has been designed for use as an isolating valve,

not a control valve, and can be serviced without removal from

the pipeline.

ISO mounting

The integral ISO body mounting allows the valve to be automated

without losing seal integrity, as the body does not require

disassembly. Manual to remote control may therefore be easily

accomplished by the ISO range of Spirax Sarco ball valves.

Sizes and pipe connections

Full bore

Flanged

Note: The nomenclature will be followed with either FB (full bore)

or RB (reduced bore) and needs to be stated when placing an

order.

Standards

This product fully complies with the requirements of the

European Pressure Equipment Directive 97/23/EC and carries

the mark when so required.

Certification

This product is available with certification to EN 10204 3.1.

Note: All certification / inspection requirements must be stated

at the time of order placement.

Options

• Self-venting ball.

• Extended stem 100 mm (4") to allow full insulation.

Technical data

Flow characteristic

Modified linear

Port

Full and reduced bore versions

Leakage test procedure to ISO 5208 (Rate A) / EN 12266-1 (Rate A)

A-B Screwed, socket weld and but weld.

A-C Flanged ASME 300.

A-D Flanged EN 1092 PN40.

A-E Flanged ASME 150.

Body design conditions

PMA Maximum allowable pressure

TMA Maximum allowable temperature

Minimum allowable temperature

PMO

Maximum operating pressure

for saturated steam service

TMO Maximum operating temperature

Minimum operating temperature

DN15 to DN50

ASME Class 150,

300 and EN 1092 PN40

DN15 to DN65

ASME Class 150,

300 and EN 1092 PN40

Pressure / temperature limits

��

Pressure bar g

The product must not be used in this region.

1⁄4", ", 1⁄2", 3⁄4", 1", 11⁄4", 11⁄2" and 2"

Screwed BSP, BSPT, NPT, BW, SW

Reduced bore

Flanged

1⁄4", ", 1⁄2", 3⁄4", 1", 11⁄4", 11⁄2", 2" and 21⁄2"

Screwed BSP, BSPT, NPT, BW, SW

Steam

saturation

curve

Available types

M10HTi2 ISO

M10HTi3 ISO

M10HTi4 ISO

Zinc plated carbon steel body and caps.

Stainless steel body and caps.

Complete stainless steel construction.

PN63

62 bar g @ 60°C

260°C @ 0 bar g

-29°C

17.5 bar g

260oC @ 0 bar g bar g
