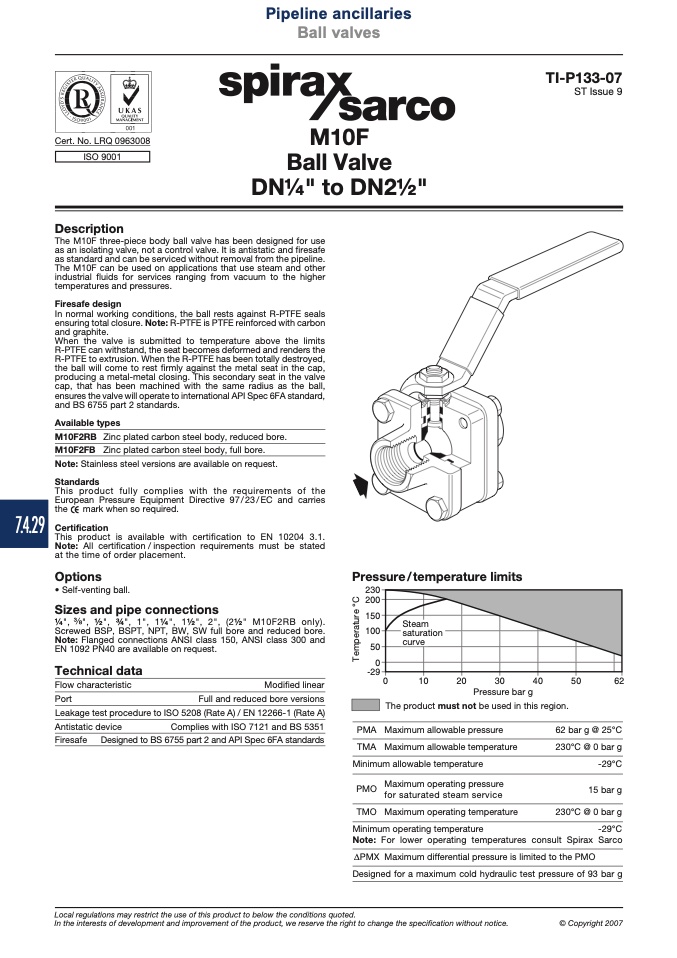

M10F

Ball Valve

DN1⁄4" to DN21⁄2"

Description

The M10F three-piece body ball valve has been designed for use

as an isolating valve, not a control valve. It is antistatic and firesafe

as standard and can be serviced without removal from the pipeline.

The M10F can be used on applications that use steam and other

industrial fluids for services ranging from vacuum to the higher

temperatures and pressures.

Firesafe design

In normal working conditions, the ball rests against R-PTFE seals

ensuring total closure. Note: R-PTFE is PTFE reinforced with carbon

and graphite.

When the valve is submitted to temperature above the limits

R-PTFE can withstand, the seat becomes deformed and renders the

R-PTFE to extrusion. When the R-PTFE has been totally destroyed,

the ball will come to rest firmly against the metal seat in the cap,

producing a metal-metal closing. This secondary seat in the valve

cap, that has been machined with the same radius as the ball,

ensures the valve will operate to international API Spec 6FA standard,

and BS 6755 part 2 standards.

Available types

M10F2RB Zinc plated carbon steel body, reduced bore.

M10F2FB Zinc plated carbon steel body, full bore.

Note: Stainless steel versions are available on request.

Standards

This product fully complies with the requirements of the

European Pressure Equipment Directive 97/23/EC and carries

the

mark when so required.

Certification

This product is available with certification to EN 10204 3.1.

Note: All certification/inspection requirements must be stated

at the time of order placement.

Options

• Self-venting ball.

Sizes and pipe connections

1⁄4", ", 1⁄2", 3⁄4", 1", 11⁄4", 11⁄2", 2", (21⁄2" M10F2RB only).

Screwed BSP, BSPT, NPT, BW, SW full bore and reduced bore.

Note: Flanged connections ANSI class 150, ANSI class 300 and

EN 1092 PN40 are available on request.

Technical data

Flow characteristic

Port

Leakage test procedure to ISO 5208 (Rate A) / EN 12266-1 (Rate A)

Antistatic device

Complies with ISO 7121 and BS 5351

Pressure/temperature limits

Modified linear

Full and reduced bore versions

��

PMA

�

��

Pressure bar g

The product must not be used in this region.

Firesafe

Designed to BS 6755 part 2 and API Spec 6FA standards

Maximum allowable pressure

62 bar g @ 25°C

230°C @ 0 bar g

-29°C

15 bar g

230°C @ 0 bar g

TMA

Minimum allowable temperature

Maximum allowable temperature

PMO

Maximum operating pressure

for saturated steam service

TMO Maximum operating temperature

Minimum operating temperature

-29°C

Note: For lower operating temperatures consult Spirax Sarco

PMX Maximum differential pressure is limited to the PMO

Designed for a maximum cold hydraulic test pressure of 93 bar g

Local regulations may restrict the use of this product to below the conditions quoted.

In the interests of development and improvement of the product, we reserve the right to change the specification without notice.
