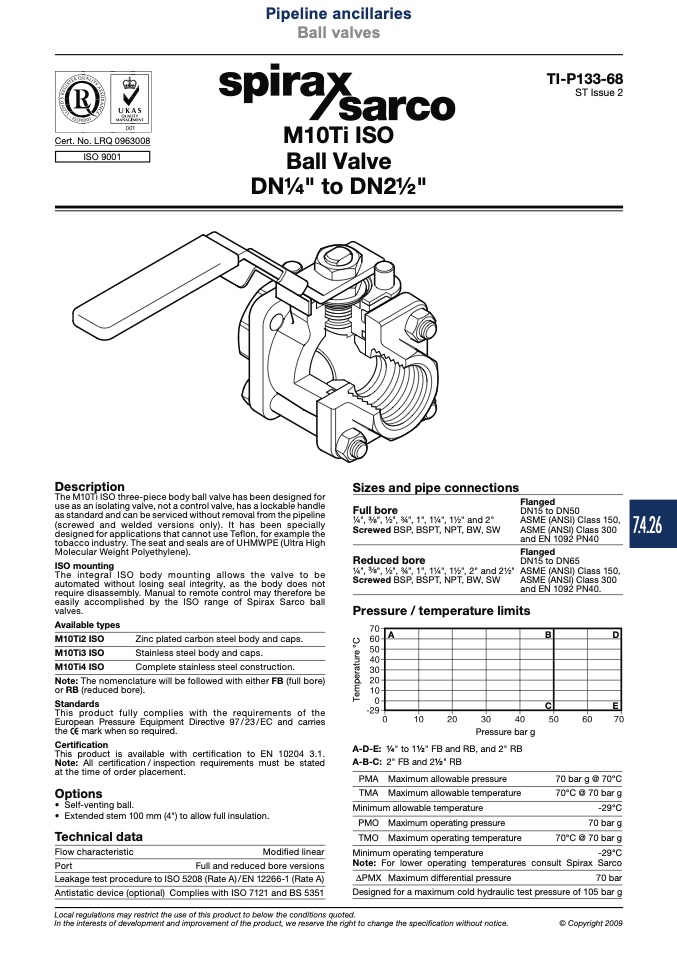

Description

The M10Ti ISO three-piece body ball valve has been designed for

use as an isolating valve, not a control valve, has a lockable handle

as standard and can be serviced without removal from the pipeline

(screwed and welded versions only). It has been specially

designed for applications that cannot use Teflon, for example the

tobacco industry. The seat and seals are of UHMWPE (Ultra High

Molecular Weight Polyethylene).

ISO mounting

The integral ISO body mounting allows the valve to be

automated without losing seal integrity, as the body does not

require disassembly. Manual to remote control may therefore be

easily accomplished by the ISO range of Spirax Sarco ball

valves.

Sizes and pipe connections

Full bore

1⁄4", ", 1⁄2", 3⁄4", 1", 11⁄4", 11⁄2" and 2"

Screwed BSP, BSPT, NPT, BW, SW

Reduced bore

1⁄4", ", 1⁄2", 3⁄4", 1", 11⁄4", 11⁄2", 2" and 21⁄2"

Screwed BSP, BSPT, NPT, BW, SW

Flanged

Available types

M10Ti2 ISO

M10Ti3 ISO

M10Ti4 ISO

Zinc plated carbon steel body and caps.

Stainless steel body and caps.

Complete stainless steel construction.

Pressure / temperature limits

Note: The nomenclature will be followed with either FB (full bore)

or RB (reduced bore).

Standards

This product fully complies with the requirements of the

European Pressure Equipment Directive 97/23/EC and carries

the

mark when so required.

Certification

This product is available with certification to EN 10204 3.1.

Note: All certification / inspection requirements must be stated

at the time of order placement.

Options

• Self-venting ball.

• Extended stem 100 mm (4") to allow full insulation.

Technical data

Flow characteristic

Port

Leakage test procedure to ISO 5208 (Rate A)/EN 12266-1 (Rate A)

Antistatic device (optional) Complies with ISO 7121 and BS 5351

70 bar g @ 70°C

70°C @ 70 bar g

-29°C

70 bar g

70°C @ 70 bar g

-29°C

Note: For lower operating temperatures consult Spirax Sarco

PMX Maximum differential pressure

70 bar

Designed for a maximum cold hydraulic test pressure of 105 bar g

Pipeline ancillaries

HVB3aslltvoaplveaslve

M10Ti ISO

Ball Valve

DN1⁄4" to DN21⁄2"

Modified linear

Full and reduced bore versions

Minimum operating temperature

Page 1 of 3

Local regulations may restrict the use of this product to below the conditions quoted.

In the interests of development and improvement of the product, we reserve the right to change the specification without notice.

Pressure bar g

A-D-E: 1⁄4" to 11⁄2" FB and RB, and 2" RB

A-B-C: 2" FB and 21⁄2" RB

PMA Maximum allowable pressure

TMA Maximum allowable temperature

Minimum allowable temperature

PMO Maximum operating pressure

TMO Maximum operating temperature

TI-P133-68

ST Issue 2

DN15 to DN50

ASME (ANSI) Class 150,

ASME (ANSI) Class 300

and EN 1092 PN40
