Spirax Sarco - Catalogo Agosto 2017

Pipeline ancillaries

HVB3aslltvoaplveaslve

Page 1 of 3

ISO 9001

7.4.23

Steam

saturation

curve

TI-P133-69

ST Issue 2

MANAGEMENT

SYSTEMS

Cert. No. LRQ 0963008

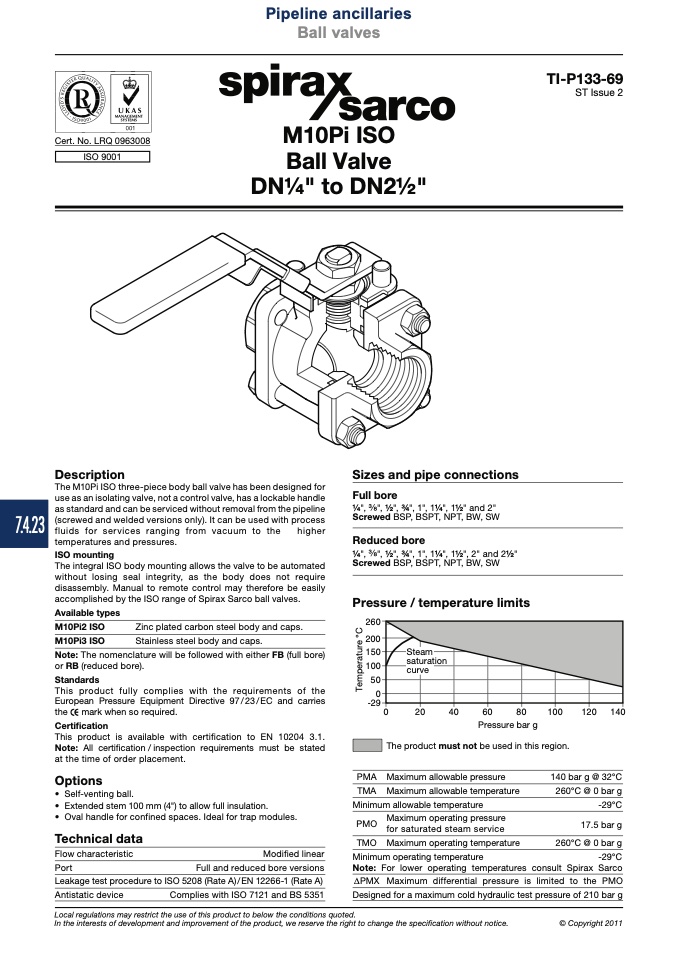

M10Pi ISO

Ball Valve

DN1⁄4" to DN21⁄2"

Description

The M10Pi ISO three-piece body ball valve has been designed for

use as an isolating valve, not a control valve, has a lockable handle

as standard and can be serviced without removal from the pipeline

(screwed and welded versions only). It can be used with process

fluids for services ranging from vacuum to the

higher

temperatures and pressures.

ISO mounting

The integral ISO body mounting allows the valve to be automated

without losing seal integrity, as the body does not require

disassembly. Manual to remote control may therefore be easily

accomplished by the ISO range of Spirax Sarco ball valves.

Sizes and pipe connections

Full bore

1⁄4", ", 1⁄2", 3⁄4", 1", 11⁄4", 11⁄2" and 2"

Screwed BSP, BSPT, NPT, BW, SW

Reduced bore

1⁄4", ", 1⁄2", 3⁄4", 1", 11⁄4", 11⁄2", 2" and 21⁄2"

Screwed BSP, BSPT, NPT, BW, SW

Pressure / temperature limits

��

PMA

Available types

M10Pi2 ISO

M10Pi3 ISO

Zinc plated carbon steel body and caps.

Stainless steel body and caps.

Note: The nomenclature will be followed with either FB (full bore)

or RB (reduced bore).

Standards

This product fully complies with the requirements of the

European Pressure Equipment Directive 97/23/EC and carries

the

mark when so required.

Certification

This product is available with certification to EN 10204 3.1.

Note: All certification / inspection requirements must be stated

at the time of order placement.

Options

• Self-venting ball.

• Extended stem 100 mm (4") to allow full insulation.

• Oval handle for confined spaces. Ideal for trap modules.

Technical data

Flow characteristic

Port

Leakage test procedure to ISO 5208 (Rate A)/EN 12266-1 (Rate A)

Antistatic device

Complies with ISO 7121 and BS 5351

��

Pressure bar g

The product must not be used in this region.

Maximum allowable pressure

140 bar g @ 32°C

260°C @ 0 bar g

-29°C

17.5 bar g

260°C @ 0 bar g

TMA

Minimum allowable temperature

Maximum allowable temperature

Modified linear

Full and reduced bore versions

PMO

Maximum operating pressure

for saturated steam service

TMO Maximum operating temperature

Minimum operating temperature

-29°C

Note: For lower operating temperatures consult Spirax Sarco

PMX Maximum differential pressure is limited to the PMO

Designed for a maximum cold hydraulic test pressure of 210 bar g

Local regulations may restrict the use of this product to below the conditions quoted.

In the interests of development and improvement of the product, we reserve the right to change the specification without notice.
