7.4.21

Steam

saturation

curve

Pipeline ancillaries

HVB3aslltvoaplveaslve

Local regulations may restrict the use of this product to below the conditions quoted.

In the interests of development and improvement of the product, we reserve the right to change the specification without notice.

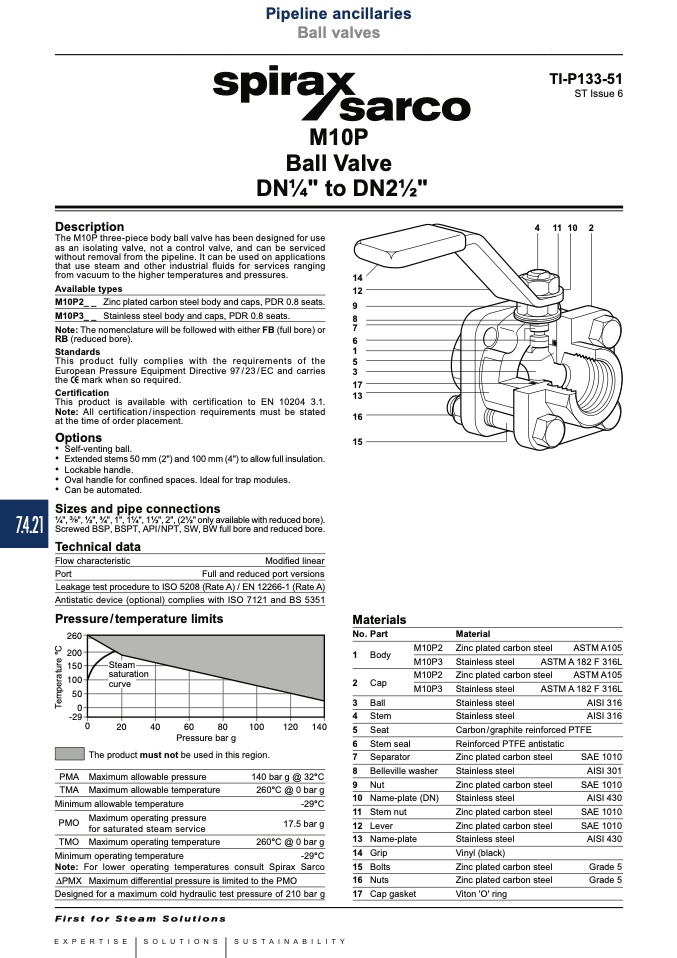

TI-P133-51

ST Issue 6

4 11 10 2

M10P

Ball Valve

DN1⁄4" to DN21⁄2"

Description

The M10P three-piece body ball valve has been designed for use

as an isolating valve, not a control valve, and can be serviced

without removal from the pipeline. It can be used on applications

that use steam and other industrial fluids for services ranging

from vacuum to the higher temperatures and pressures.

Available types

Zinc plated carbon steel body and caps, PDR 0.8 seats.

Stainless steel body and caps, PDR 0.8 seats.

Note: The nomenclature will be followed with either FB (full bore) or

Standards

This product fully complies with the requirements of the

M10P2_ _

M10P3_ _

RB (reduced bore).

European Pressure Equipment Directive 97/23/EC and carries

the mark when so required.

Certification

This product is available with certification to EN 10204 3.1.

Note: All certification/inspection requirements must be stated

at the time of order placement.

Options

• Self-venting ball.

• Extendedstems50mm(2")and100mm(4")toallowfullinsulation.

• Lockable handle.

• Oval handle for confined spaces. Ideal for trap modules.

• Can be automated.

Sizes and pipe connections

1⁄4", ", 1⁄2", 3⁄4", 1", 11⁄4", 11⁄2", 2", (21⁄2" only available with reduced bore).

Screwed BSP, BSPT, API/NPT, SW, BW full bore and reduced bore.

Technical data

Flow characteristic

Modified linear

Port

Full and reduced port versions

Leakage test procedure to ISO 5208 (Rate A) / EN 12266-1 (Rate A)

Antistatic device (optional) complies with ISO 7121 and BS 5351

Pressure/temperature limits

Materials

��

Pressure bar g

The product must not be used in this region.

No. Part

1 Body

Material

M10P2

M10P3

Zinc plated carbon steel

Stainless steel

ASTM A 182 F 316L

Zinc plated carbon steel

ASTM A105

2 Cap

M10P2

M10P3

3 Ball

4 Stem

5 Seat

6 Stem seal

7 Separator

8 Belleville washer

9 Nut

10 Name-plate (DN)

11 Stem nut

12 Lever

13 Name-plate

14 Grip

15 Bolts

16 Nuts

17 Cap gasket

Stainless steel

Carbon/graphite reinforced PTFE

Reinforced PTFE antistatic

ASTM A 182 F 316L

AISI 316

PMA Maximum allowable pressure

TMA Maximum allowable temperature

Minimum allowable temperature

PMO

Maximum operating pressure

for saturated steam service

TMO Maximum operating temperature

Minimum operating temperature

140 bar g @ 32°C

260°C @ 0 bar g

-29°C

17.5 bar g

260°C @ 0 bar g

Zinc plated carbon steel

Stainless steel

Zinc plated carbon steel

Stainless steel

Zinc plated carbon steel

Stainless steel

Vinyl (black)

Zinc plated carbon steel

Viton 'O' ring

SAE 1010

AISI 301

SAE 1010

AISI 430

SAE 1010

AISI 430

Grade 5

-29°C

Note: For lower operating temperatures consult Spirax Sarco

PMX Maximum differential pressure is limited to the PMO

Designed for a maximum cold hydraulic test pressure of 210 bar g
