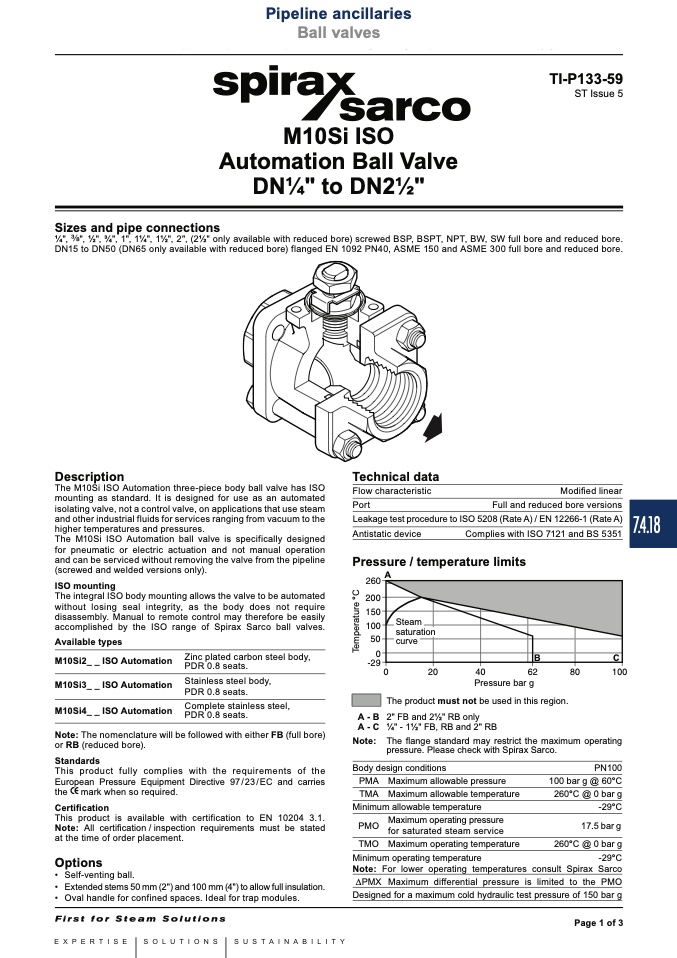

Pipeline ancillaries

HVB3aslltvoaplveaslve

Local regulations may restrict the use of this product to below the conditions quoted.

In the interests of development and improvement of the product, we reserve the right to change the specification without notice.

© Copyright 2012

TI-P133-59

ST Issue 5

M10Si ISO

Automation Ball Valve

DN1⁄4" to DN21⁄2"

Sizes and pipe connections

1⁄4", ", 1⁄2", 3⁄4", 1", 11⁄4", 11⁄2", 2", (21⁄2" only available with reduced bore) screwed BSP, BSPT, NPT, BW, SW full bore and reduced bore.

DN15 to DN50 (DN65 only available with reduced bore) flanged EN 1092 PN40, ASME 150 and ASME 300 full bore and reduced bore.

Description

The M10Si ISO Automation three-piece body ball valve has ISO

mounting as standard. It is designed for use as an automated

isolating valve, not a control valve, on applications that use steam

and other industrial fluids for services ranging from vacuum to the

higher temperatures and pressures.

The M10Si ISO Automation ball valve is specifically designed

for pneumatic or electric actuation and not manual operation

and can be serviced without removing the valve from the pipeline

(screwed and welded versions only).

ISO mounting

The integral ISO body mounting allows the valve to be automated

without losing seal integrity, as the body does not require

disassembly. Manual to remote control may therefore be easily

accomplished by the ISO range of Spirax Sarco ball valves.

Technical data

Flow characteristic

Port

Leakage test procedure to ISO 5208 (Rate A) / EN 12266-1 (Rate A)

Antistatic device

Complies with ISO 7121 and BS 5351

Pressure / temperature limits

������

A

������

������

������

����

��

������

��

����

����

����

����

������

Pressure bar g

Modified linear

Full and reduced bore versions

Available types

M10Si2_ _ ISO Automation

M10Si3_ _ ISO Automation

M10Si4_ _ ISO Automation

Zinc plated carbon steel body,

PDR 0.8 seats.

Stainless steel body,

PDR 0.8 seats.

Complete stainless steel,

PDR 0.8 seats.

The product must not be used in this region.

A-B 2"FBand21⁄2"RBonly

Steam

saturation

curve

B

C

Note: The nomenclature will be followed with either FB (full bore)

or RB (reduced bore).

Standards

This product fully complies with the requirements of the

European Pressure Equipment Directive 97/23/EC and carries

the mark when so required.

Certification

This product is available with certification to EN 10204 3.1.

Note: All certification / inspection requirements must be stated

at the time of order placement.

Options

• Self-venting ball.

• Extended stems 50 mm (2") and 100 mm (4") to allow full insulation.

• Oval handle for confined spaces. Ideal for trap modules.

A-C 1⁄4"-11⁄2"FB,RBand2"RB

Note: The flange standard may restrict the maximum operating

pressure. Please check with Spirax Sarco.

Body design conditions

PN100

100 bar g @ 60°C

260°C @ 0 bar g

-29°C

17.5 bar g

PMX Maximum differential pressure is limited to the PMO

Designed for a maximum cold hydraulic test pressure of 150 bar g

PMA Maximum allowable pressure

TMA Maximum allowable temperature

Minimum allowable temperature

PMO

Maximum operating pressure

for saturated steam service

TMO Maximum operating temperature

Minimum operating temperature

Note: For lower operating temperatures consult Spirax Sarco

260°C @ 0 bar g

-29°C

Page 1 of 3

7.4.18

T

e

m

p

e

r

a

t

u

r

e

°

C
