Pipeline ancillaries

HVB3aslltvoaplveaslve

Local regulations may restrict the use of this product to below the conditions quoted.

In the interests of development and improvement of the product, we reserve the right to change the specification without notice.

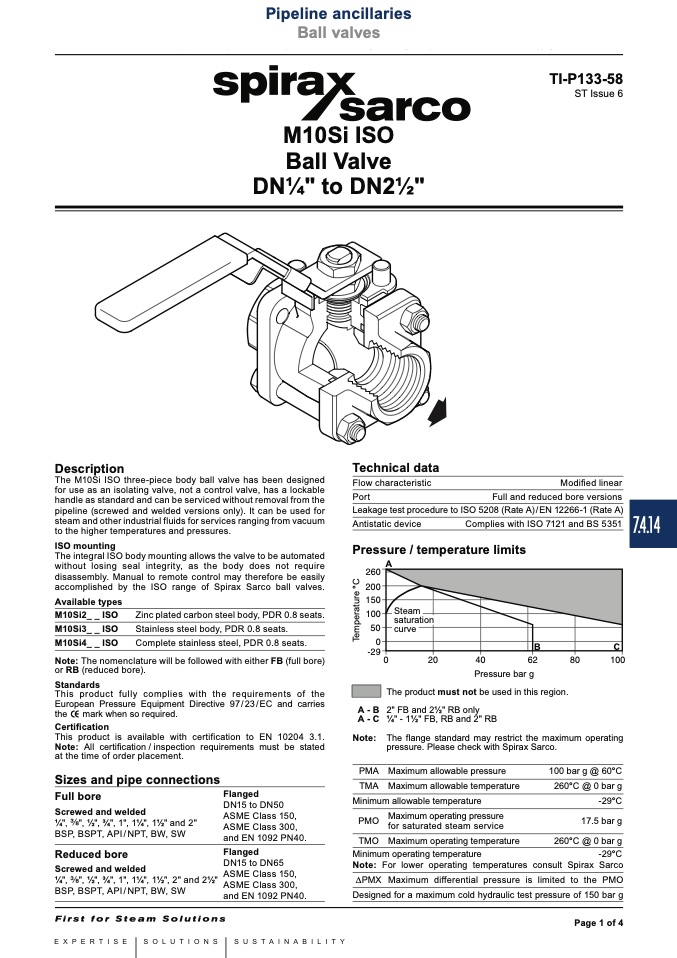

TI-P133-58

ST Issue 6

M10Si ISO

Ball Valve

DN1⁄4" to DN21⁄2"

Description

The M10Si ISO three-piece body ball valve has been designed

for use as an isolating valve, not a control valve, has a lockable

handle as standard and can be serviced without removal from the

pipeline (screwed and welded versions only). It can be used for

steam and other industrial fluids for services ranging from vacuum

to the higher temperatures and pressures.

ISO mounting

The integral ISO body mounting allows the valve to be automated

without losing seal integrity, as the body does not require

disassembly. Manual to remote control may therefore be easily

accomplished by the ISO range of Spirax Sarco ball valves.

Technical data

Flow characteristic

Port

Full and reduced bore versions

Leakage test procedure to ISO 5208 (Rate A) / EN 12266-1 (Rate A)

Antistatic device

Complies with ISO 7121 and BS 5351

Pressure / temperature limits

Modified linear

Available types

M10Si2_ _ ISO

M10Si3_ _ ISO

M10Si4_ _ ISO

Zinc plated carbon steel body, PDR 0.8 seats.

Stainless steel body, PDR 0.8 seats.

Complete stainless steel, PDR 0.8 seats.

��

A-B

A-C

Note:

PMA

��

Pressure bar g

The product must not be used in this region.

2" FB and 21⁄2" RB only

The flange standard may restrict the maximum operating

pressure. Please check with Spirax Sarco.

Steam

saturation

curve

Note: The nomenclature will be followed with either FB (full bore)

or RB (reduced bore).

Standards

This product fully complies with the requirements of the

European Pressure Equipment Directive 97/23/EC and carries

the mark when so required.

Certification

This product is available with certification to EN 10204 3.1.

Note: All certification / inspection requirements must be stated

at the time of order placement.

1⁄4" - 11⁄2" FB, RB and 2" RB

Sizes and pipe connections

Full bore

Screwed and welded

1⁄4", ", 1⁄2", 3⁄4", 1", 11⁄4", 11⁄2" and 2"

BSP, BSPT, API / NPT, BW, SW

Reduced bore

Screwed and welded

1⁄4", ", 1⁄2", 3⁄4", 1", 11⁄4", 11⁄2", 2" and 21⁄2"

BSP, BSPT, API / NPT, BW, SW

Maximum allowable pressure

100 bar g @ 60°C

260°C @ 0 bar g

-29°C

17.5 bar g

260°C @ 0 bar g

Flanged

DN15 to DN50

ASME Class 150,

ASME Class 300,

and EN 1092 PN40.

Flanged

DN15 to DN65

ASME Class 150,

ASME Class 300,

and EN 1092 PN40.

TMA

Minimum allowable temperature

Maximum allowable temperature

PMO

Maximum operating pressure

for saturated steam service

TMO Maximum operating temperature

Minimum operating temperature
