Condensate pumps

Electric pumps

A2111C

A2107C

B5840C

B5830C

B0622C

B0615C

B0507C

C5840C

C5830C

C0622C

C0615C

C5511C

D5840C

E5955C

D5830C

E5940C

D5822C

E5930C

A0507C

A0207C

6.2.11

TI-P089-06

ST Issue 4

Series III

'Cascade' Condensate Recovery Unit

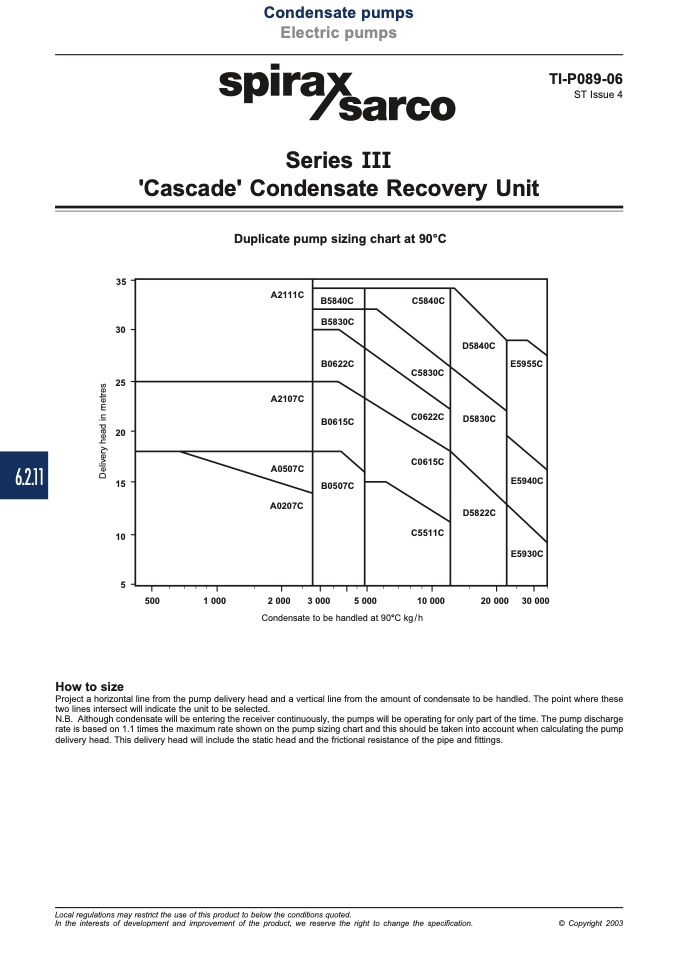

Duplicate pump sizing chart at 90°C

35

30

25

20

15

10

5

How to size

500

1 000

2 000

Condensate to be handled at 90°C kg/h

3 000

5 000

10 000

20 000

30 000

Project a horizontal line from the pump delivery head and a vertical line from the amount of condensate to be handled. The point where these

two lines intersect will indicate the unit to be selected.

N.B. Although condensate will be entering the receiver continuously, the pumps will be operating for only part of the time. The pump discharge

rate is based on 1.1 times the maximum rate shown on the pump sizing chart and this should be taken into account when calculating the pump

delivery head. This delivery head will include the static head and the frictional resistance of the pipe and fittings.

Local regulations may restrict the use of this product to below the conditions quoted.

In the interests of development and improvement of the product, we reserve the right to change the specification.

© Copyright 2003

D

e

l

i

v

e

r

y

h

e

a

d

i

n

m

e

t

r

e

s
