Condensate pumps

Electric pumps

A2111S

A2107S

B5840S

B5830S

B0622S

B0615S

B0507S

C5840S

C5830S

C0622S

C0615S

C5511S

D5840S

E5955S

D5830S

E5940S

D5822S

E5930S

A0507S

A0207S

6.2.9

TI-P089-05

ST Issue 6

35

30

25

20

15

10

5

How to size

300

500

1 000

2 000 3 000

5 000

10 000

20 000

Series III

Condensate Recovery Unit

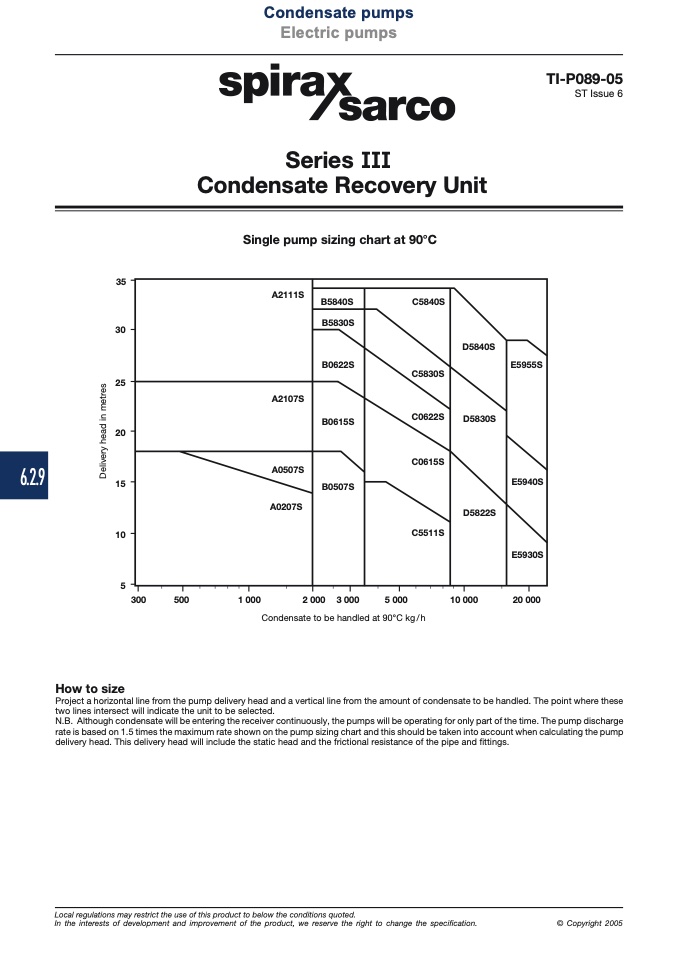

Single pump sizing chart at 90°C

Condensate to be handled at 90°C kg/h

Project a horizontal line from the pump delivery head and a vertical line from the amount of condensate to be handled. The point where these

two lines intersect will indicate the unit to be selected.

N.B. Although condensate will be entering the receiver continuously, the pumps will be operating for only part of the time. The pump discharge

rate is based on 1.5 times the maximum rate shown on the pump sizing chart and this should be taken into account when calculating the pump

delivery head. This delivery head will include the static head and the frictional resistance of the pipe and fittings.

Local regulations may restrict the use of this product to below the conditions quoted.

In the interests of development and improvement of the product, we reserve the right to change the specification.

© Copyright 2005

D

e

l

i

v

e

r

y

h

e

a

d

i

n

m

e

t

r

e

s
