Condensate pumps

Mechanical pumps and pumps traps

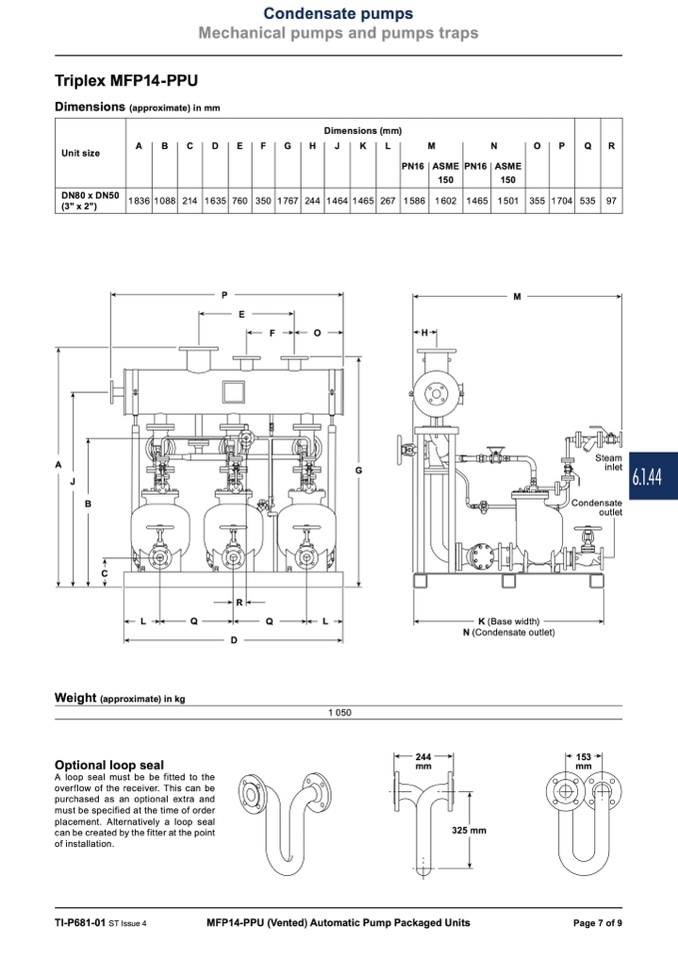

Triplex MFP14-PPU

Dimensions (approximate) in mm

Unit size

Dimensions (mm)

A

B

C

D

E

F

G

H

J

K

L

M

N

O

P

Q

R

PN16 ASME PN16 ASME

150

150

DN80 x DN50

1836 1088 214 1635 760 350 1767 244 1464 1465 267 1586 1602 1465 1501 355 1704 535 97

(3" x 2")

A

J

C

Weight (approximate) in kg

Optional loop seal

G

Steam

inlet

6.1.44

Condensate

outlet

B

A loop seal must be be fitted to the

overflow of the receiver. This can be

purchased as an optional extra and

must be specified at the time of order

placement. Alternatively a loop seal

can be created by the fitter at the point

of installation.

244

mm

153

mm

L

Q

R

D

Q

L

K (Base width)

N (Condensate outlet)

P

M

E

TI-P681-01 ST Issue 4

MFP14-PPU (Vented) Automatic Pump Packaged Units

Page 7 of 9

F

O

H

1 050

325 mm
