Condensate pumps
Mechanical pumps and pumps traps

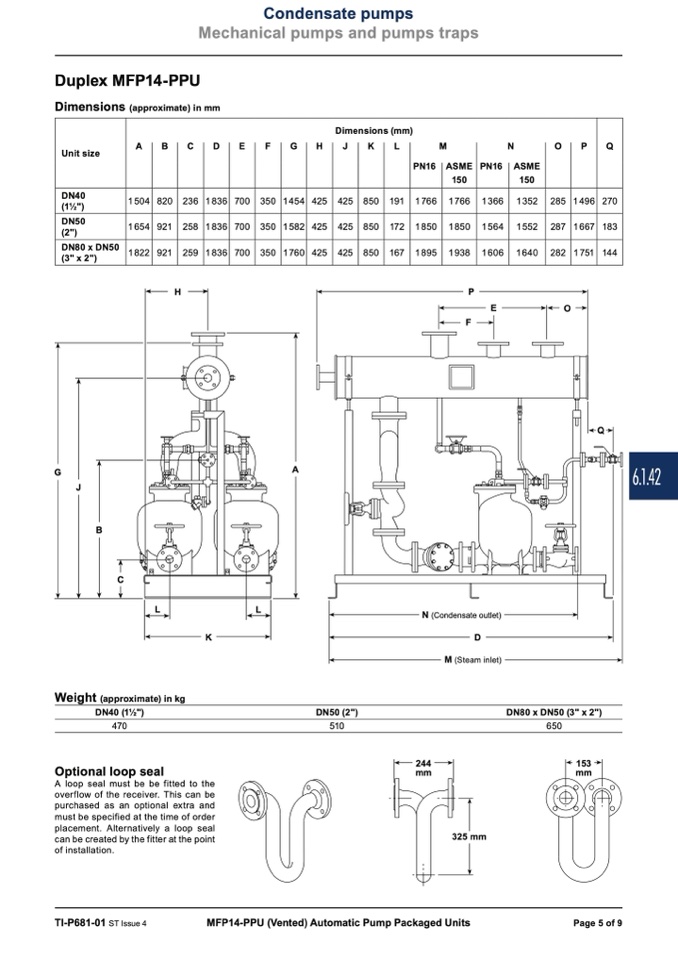

Duplex MFP14-PPU
Dimensions (approximate) in mm
Unit size
DN40
(11⁄2")
DN50
(2")
DN80 x DN50
(3" x 2")
Dimensions (mm)
A
B
C
D
E
F
G
H
J
K
L
M
N
O
P
Q
PN16 ASME PN16 ASME
150
150
1504 820 236 1836 700 350 1454 425 425 850 191 1766 1766 1366 1352 285 1496 270
1654 921 258 1836 700 350 1582 425 425 850 172 1850 1850 1564 1552 287 1667 183
G
J
B
H
P
F
A
E
O
Q
6.1.42
1822 921
259 1836 700 350 1760 425 425 850 167 1895 1938 1606 1640 282 1751 144
C
L
L
Weight (approximate) in kg
DN40 (11⁄2")
470
Optional loop seal
A loop seal must be be fitted to the
overflow of the receiver. This can be
purchased as an optional extra and
must be specified at the time of order
placement. Alternatively a loop seal
can be created by the fitter at the point
of installation.
DN50 (2")
510
DN80 x DN50 (3" x 2")
650
N (Condensate outlet)
K
D
TI-P681-01 ST Issue 4
MFP14-PPU (Vented) Automatic Pump Packaged Units
Page 5 of 9
244
mm
153
mm
M (Steam inlet)
325 mm
