Condensate pumps

Mechanical pumps and pumps traps

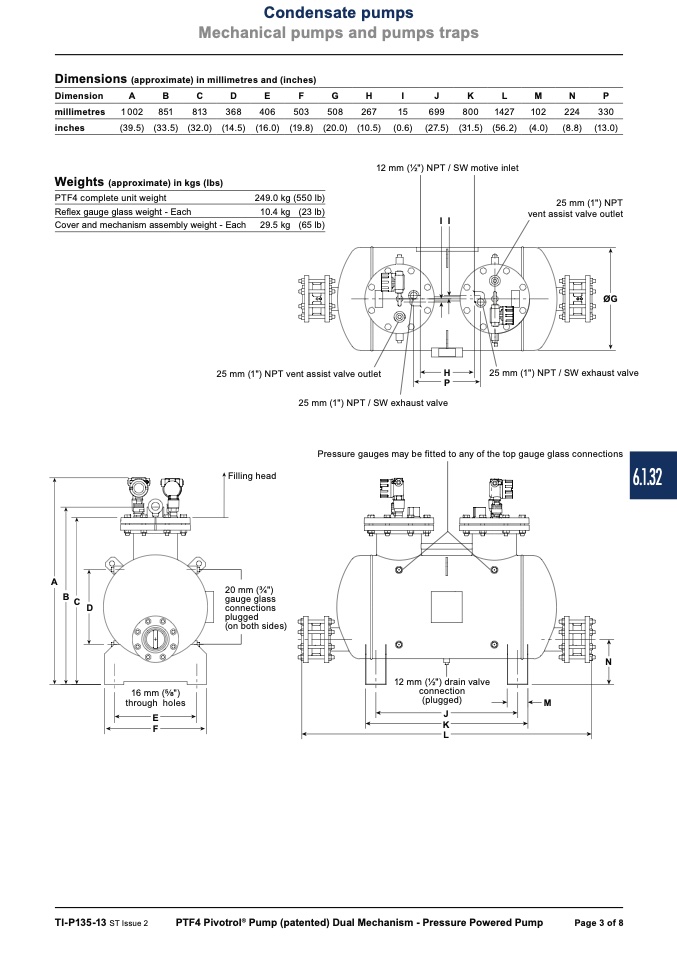

Dimensions (approximate) in millimetres and (inches)

Dimension

A

B

C

D

E

F

G

H

I

J

K

L

M

N

P

millimetres 1002 851

813

368

406

503

508

267

15

699

800

1427

102

224

330

inches

(39.5) (33.5) (32.0) (14.5) (16.0) (19.8) (20.0) (10.5) (0.6) (27.5) (31.5) (56.2) (4.0) (8.8) (13.0)

Weights (approximate) in kgs (lbs)

PTF4 complete unit weight

Reflex gauge glass weight - Each

Cover and mechanism assembly weight - Each

249.0 kg (550 lb)

12 mm (1⁄2") NPT / SW motive inlet

II

25 mm (1") NPT

vent assist valve outlet

ØG

A

B

C

D

20 mm (3⁄4")

gauge glass

connections

plugged

TI-P135-13 ST Issue 2

PTF4 Pivotrol

®

Pump (patented) Dual Mechanism - Pressure Powered Pump

Page 3 of 8

")

through holes

E

F

12 mm (1⁄2") drain valve

connection

16 mm (

(plugged)

M

J

(on both sides)

10.4 kg

29.5 kg

(23 lb)

(65 lb)

H

P

25 mm (1") NPT / SW exhaust valve

25 mm (1") NPT / SW exhaust valve

Pressure gauges may be fitted to any of the top gauge glass connections

6.1.32

25 mm (1") NPT vent assist valve outlet

Filling head

K

L

N
