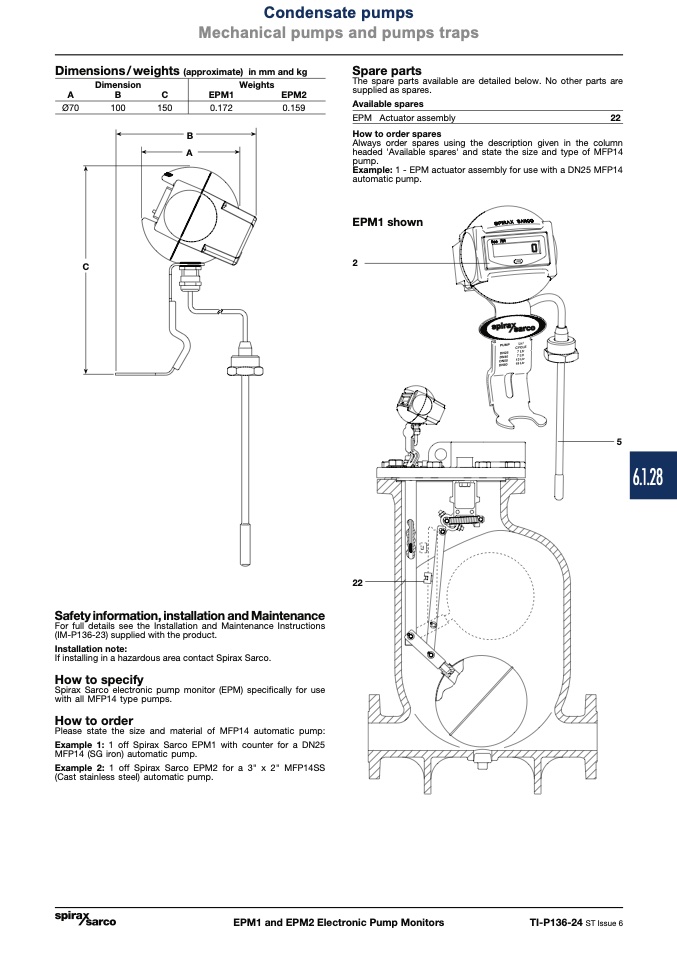

Dimensions/weights (approximate) in mm and kg

Dimension

Weights

A

B

C

EPM1

EPM2

Spare parts

The spare parts available are detailed below. No other parts are

supplied as spares.

Available spares

EPM Actuator assembly

22

How to order spares

Always order spares using the description given in the column

headed 'Available spares' and state the size and type of MFP14

pump.

Example: 1 - EPM actuator assembly for use with a DN25 MFP14

automatic pump.

Ø70

100

150

0.172

0.159

C

EPM1 shown

2

B

A

Safety information, installation and Maintenance

For full details see the Installation and Maintenance Instructions

(IM-P136-23) supplied with the product.

Installation note:

If installing in a hazardous area contact Spirax Sarco.

How to specify

Spirax Sarco electronic pump monitor (EPM) specifically for use

with all MFP14 type pumps.

How to order

Please state the size and material of MFP14 automatic pump:

Example 1: 1 off Spirax Sarco EPM1 with counter for a DN25

MFP14 (SG iron) automatic pump.

Example 2: 1 off Spirax Sarco EPM2 for a 3" x 2" MFP14SS

(Cast stainless steel) automatic pump.

Condensate pumps

Mechanical pumps and pumps traps

EPM1 and EPM2 Electronic Pump Monitors

TI-P136-24 ST Issue 6

22

5

6.1.28
